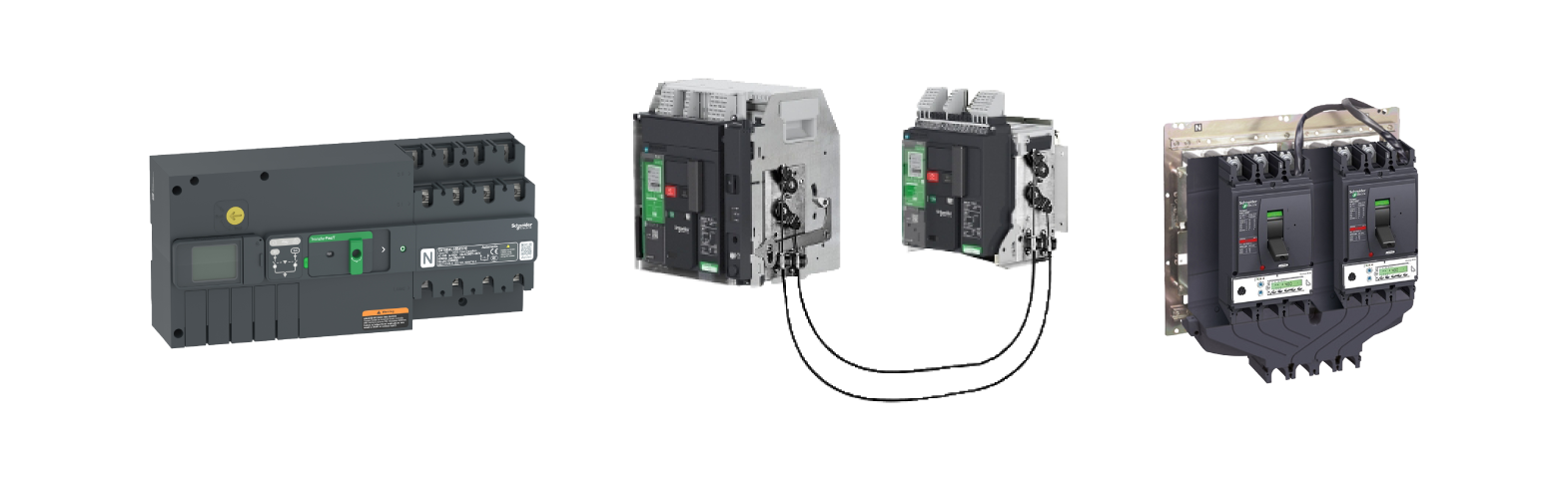

Transferpact

Source-changeover devices providing manual (MTSE) or automatic (ATSE) transfer switches, by synchonizing either circuit breakers (Class CB) or switch-disconnectors (Class PC)

Specifications :

  • Source changeovers from 40 A to 6300 A

Features :

  • Nominal current from 40 to 2500 A.
  • Source changeover switch produced around 2 Interpact INS/INV.
  • Manual changeover switches by interlocking of operating mechanisms via rotary handles or with captive keys
  • Possible complete source changeover assembly for Interpact INS250-100 A to INS630A
  • Wide range of auxiliaries and accessories common to the Interpact range.

Benefits :

  • guarantee of continuity of supply of some loads for safety reasons or to maintain the production cycle
  • effective energy management

Applications :

  • Tertiary sector
  • Industry
  • Energy and Infrastructures
  • Airports

Enquiry now

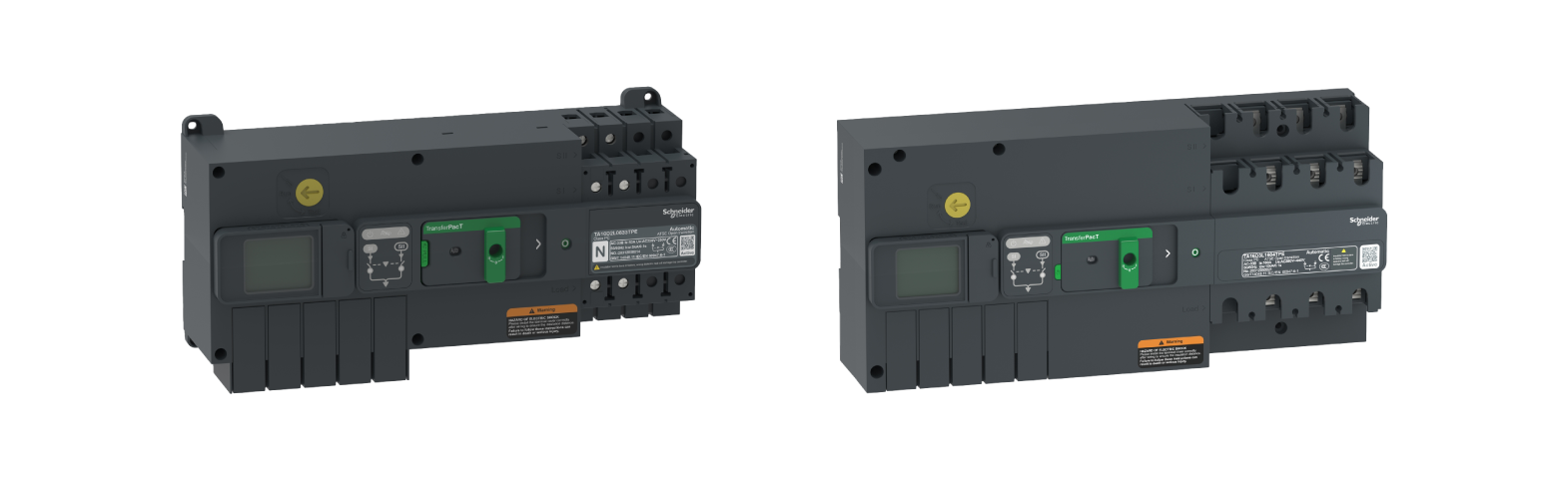

TransferPacT

Source changeover devices of switch-disconnector type (class PC), manual (MTSE) or automatic (ATSE), compliant with IEC 60947-6-1 standard

Specifications :

  • All-in-one transfer switches, manual up to 630 A, automatic up to 160 A
  • Poles description : 2P, 3P, 4P
  • Rated operational current : 32A, 40A, 50A, 63A, 80A, 100A, 125A, 160A, 200A, 250A, 320A, 400A, 500A, 630A
  • Rated operational voltage : 230V, 400V
  • Control type : Rotary knob, Selector switch, 4 push-buttons

Features :

  • Secured dielectric test approach and an uninterrupted main circuit during upgrade or maintenance.
  • Natively connected controller based on PME, EcoStruxure provides 24/7 precise power monitoring and predictive maintenance.
  • Indicates power state, alarm, switch position, and operating mode.
  • Built-in DPS and sensing wire to save 30% of commissioning time.
  • Automatic position, manual position, padlock position to disconnect for maintenance.
  • Play and plug modules provide fire protection, genset control, remote transfer, load-shedding, test, and communication functions.
  • Self-powered controller provide the exact same function as active HMI does including power monitoring, status display, settings, event log and control transfer switch.

Benefits :

  • Power availability
  • Efficiency and simplicity
  • Natively connected with EcoStruxure Power

Applications :

  • Commercial real estate
  • Healthcare
  • Datacenter
  • Transportation
