Specifications :

• Poles description : 1P, 2P, 3P, 4P
• Rated operational current : 6A, 8.5A, 15A, 16A, 20A, 25A, 32A, 40A, 63A, 100A
• Control type : Remote and manual control, Remote control
• Rated operational voltage : 250V, 400V

Features :

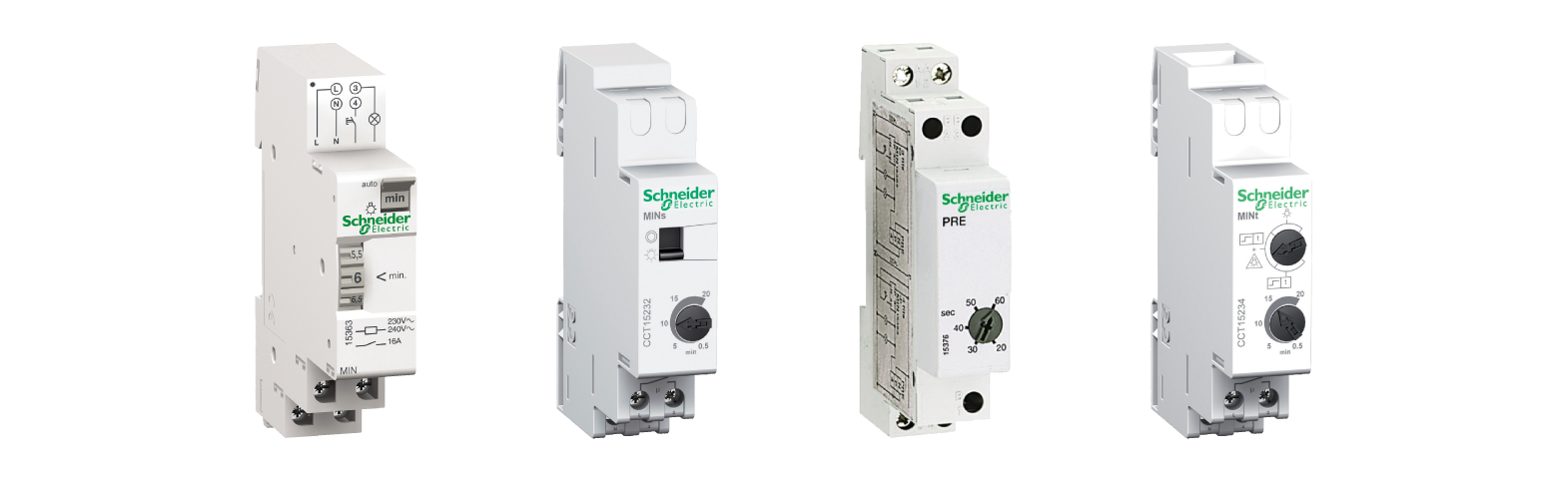

• MIN : time delay adjustable from 1 to 7 min.
• MINs : time delay adjustable from 0.5 to 20 min., silent operation
• MINp : time delay adjustable from 0.5 to 20 min., silent operation with switch-off warning
• MINt : time delay adjustable from 0.5 to 20 min. silent operation with switch-off warning and impulse relay function, new
• PRE : switch-off warning, only to be used in association with MIN and MINs

Benefits :

• They are easy to use by pressing on the control push-button.
• They are simple to implement (mechanical compatibility with the electrical distribution comb- busbar).

Applications :

• Allowing connection of several control push-buttons, they are ideal for controlling lighting of stairways.
• They can be used also for lighting of hallways to buildings, garages, toilet ventilation...
