Source-changeover devices providing manual (MTSE) or automatic (ATSE) transfer switches, by synchonizing either circuit breakers (Class CB) or switch-disconnectors (Class PC)

Specifications :

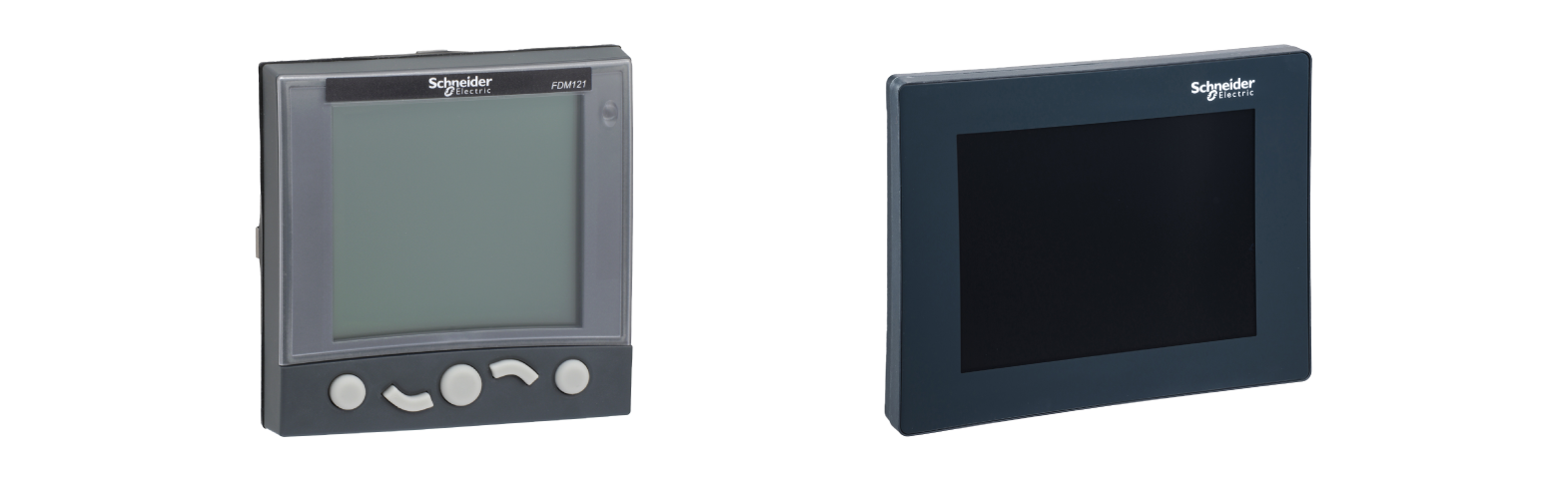

• LCD displays for energy data

Features :

• graphical view of electrical measures and breaker status
• touch screen navigation and controls
• Ethernet and Modbus connectivities

Benefits :

• Fast access to essential information
• Connects to Acti 9, Compact NSX, Compact NS, PowerPact or Masterpact switchgears

Applications :

• Status indication and remote control

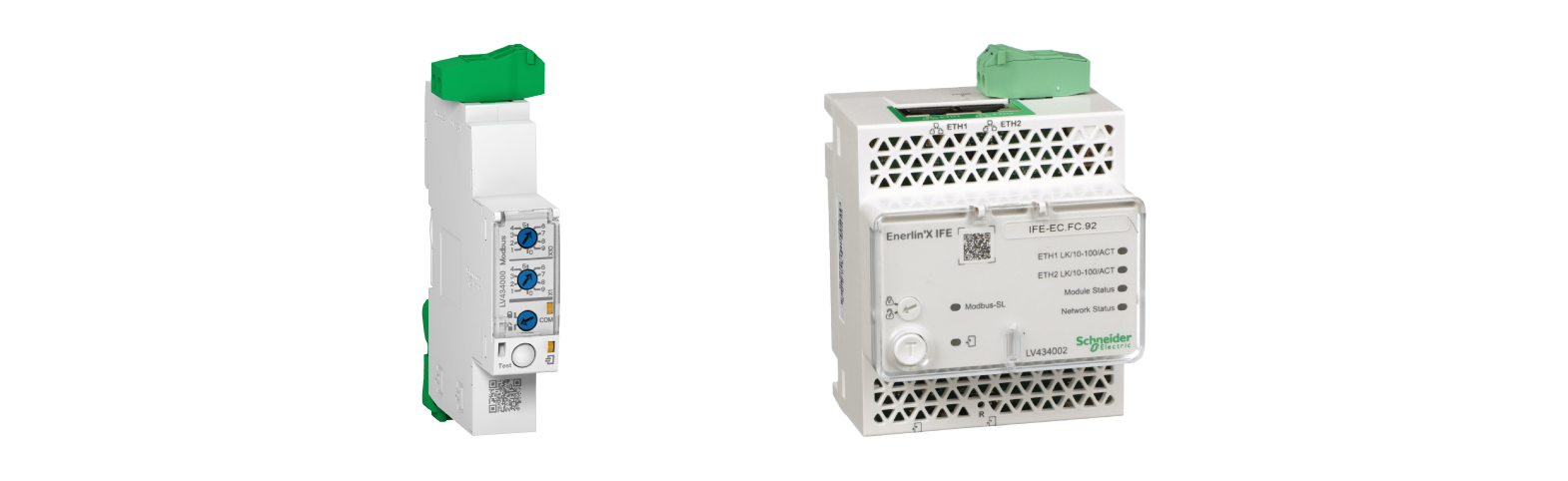

IFE enables an intelligent modular unit (IMU) for Masterpact or Compact circuit breakers to be connected to an Ethernet network

Specifications :

• Ethernet interface and gateway

Features :

• The IFE Ethernet interface for LV circuit breaker enables an intelligent modular unit (IMU) to be connected to an Ethernet network. Each circuit breaker has its own IFE and a corresponding IP address.

Benefits :

• Auto discovery of Modbus SL devices
• Capability of sending alarms over emails
• Dual Ethernet port for simple daisy chain connection
• DIN rail mounting device

Applications :

• Ethernet communication interface for LV breakers
• Embedded Web pages for energy monitoring and control
• Master for Modbus Serial Line port

Specifications :

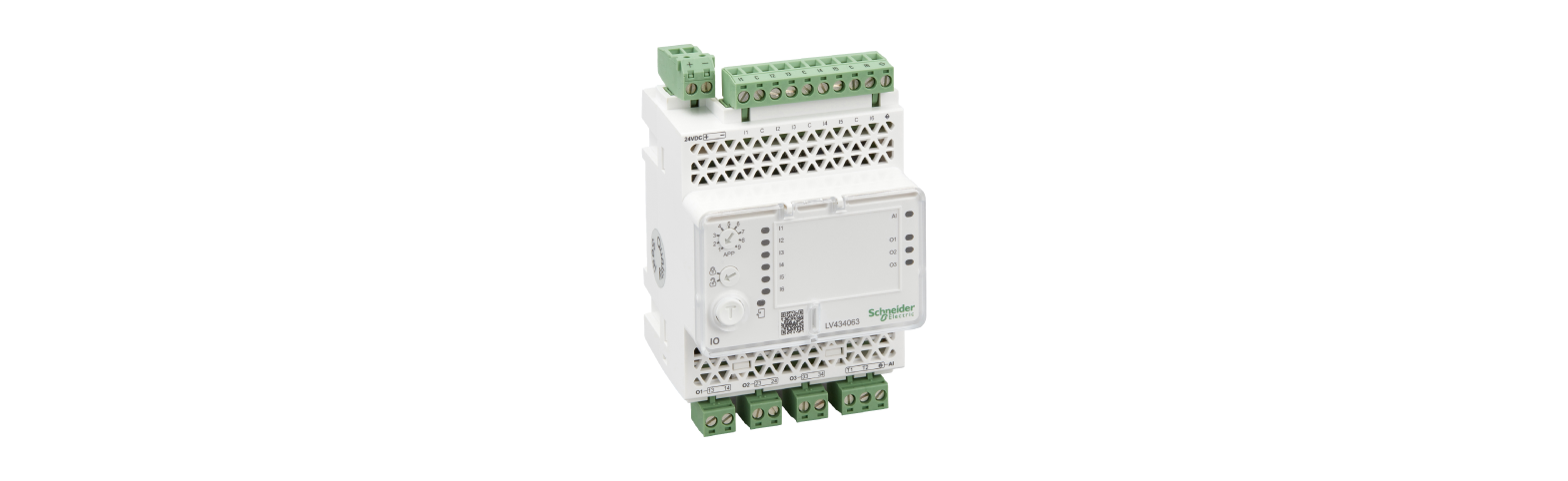

• The IO (Input/Output) application module for LV breakers

Features :

• The IO (Input/Output) application module for LV breakers is part of an ULP system with built-in functionalities and applications to enhance the application needs.

Benefits :

• More than a simple cradle management module
• Wide variety of applications for LV breakers
• Consistency with Masterpact and Compact ranges
• DIN rail mounting device

Applications :

• Predefined applications including cradle management
• Protection
• Control
• Energy management
• Monitoring
