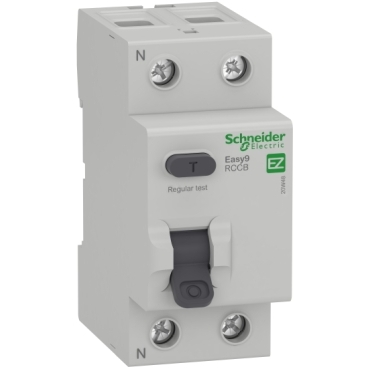

Easy9 Residual Current Circuit Breaker - 2P - 25A / 40A / 63A - 30 mA - AC type - 230 V

Specifications
Range of product	Easy9
Product or component typee	Residual current circuit breaker (RCCB)
Device short name	Easy9 RCCB
Poles	2P
Neutral position	Left
[In] Rated current	25 A / 40 A / 63 A
Network type	AC
Earth-leakage sensitivity	30 mA
earth-leakage protection time delay	Instantaneous
Earth-leakage protection class	Type AC
Rated breaking and making capacity	500 A
Rated conditional short-circuit current	Easy9 MCB: 3000 A 25 A / 40 A / 63 A

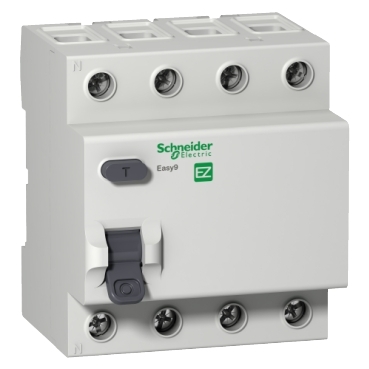

Easy9 Residual Current Circuit Breaker - 4P - 25 A / 63 A - 30 mA - AC type - 400 V

Specifications
Range of product	Easy9
Product or component typee	Residual current circuit breaker (RCCB)
Device short name	Easy9 RCCB
Poles	4P
Neutral position	Left
[In] Rated current	25 A / 63 A
Network type	AC
Earth-leakage sensitivity	30 mA
earth-leakage protection time delay	Instantaneous
Earth-leakage protection class	Type AC
Rated breaking and making capacity	500 A
Rated conditional short-circuit current	Easy9 MCB: 3000 A 25 A / 63 A

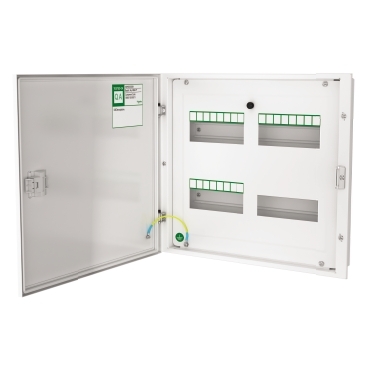

Easy9 - TPN DB - double door - IP43 - 4 ways / 12 ways

Specifications
Range	Easy9
Product name	TPN
Device application	Low voltage electrical distribution
Product or component typee	Empty consumer unit
enclosure type	Metal enclosure
Provided equipment	removable gland plates removable centre plates blanking plate earthing bar comb busbar earthing wire DIN rail neutral bar and cable phase voltage cable

Easy9 - VTPN DB - double door - I/c-MCCB 100A - IP43 - 4 way / 8 way / 12 way

Specifications
Range	Easy9
Product name	VTPN
Device application	Low voltage electrical distribution
Product or component typee	Empty consumer unit
enclosure type	Metal enclosure
Provided equipment	removable gland plates removable centre plates blanking plate earthing bar comb busbar earthing wire DIN rail neutral bar and cable phase voltage cable
