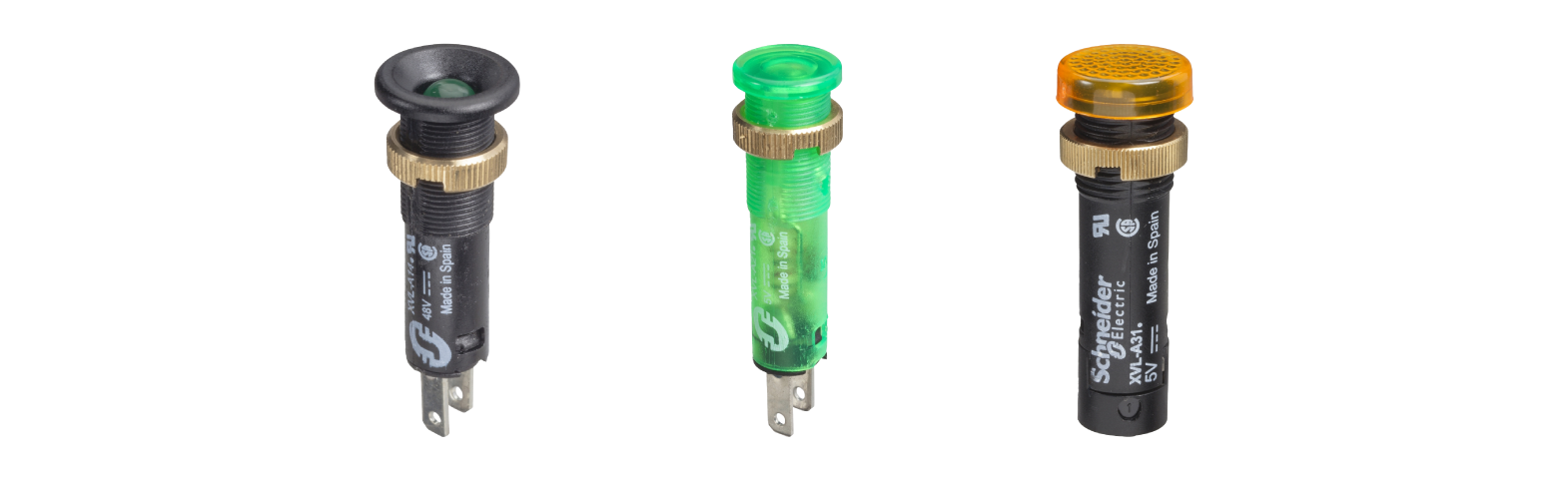

Harmony XVL

The monolithic range of Ø 8 or Ø 12 compact pilot lights is easy to install on enclosures and cabinets

Specifications :

  • Ø 8-12 mm LED plastic pilot lights

Features :

  • Ø 8 and 12 mm
  • IP 40 (IP 65 available as an option)
  • Compliance with IEC, UL, CSA standards
  • CE marking
  • Compact dimensions (depth)
  • Long service life
  • Good resistance to impact, vibration and overvoltage
  • Low power consumption allows direct compatibility with PLC outputs

Benefits :

  • This simple and compact range of miniature LED pilot lights are ideal for applications in an industrial environment.
  • Robust and with low power consumption, the range allows direct compatibility with PLC outputs.

Applications :

  • Industry: manufacturers of simple and modular machines, synoptic views of installations
  • Commercial and infrastructure: buildings

Enquiry now

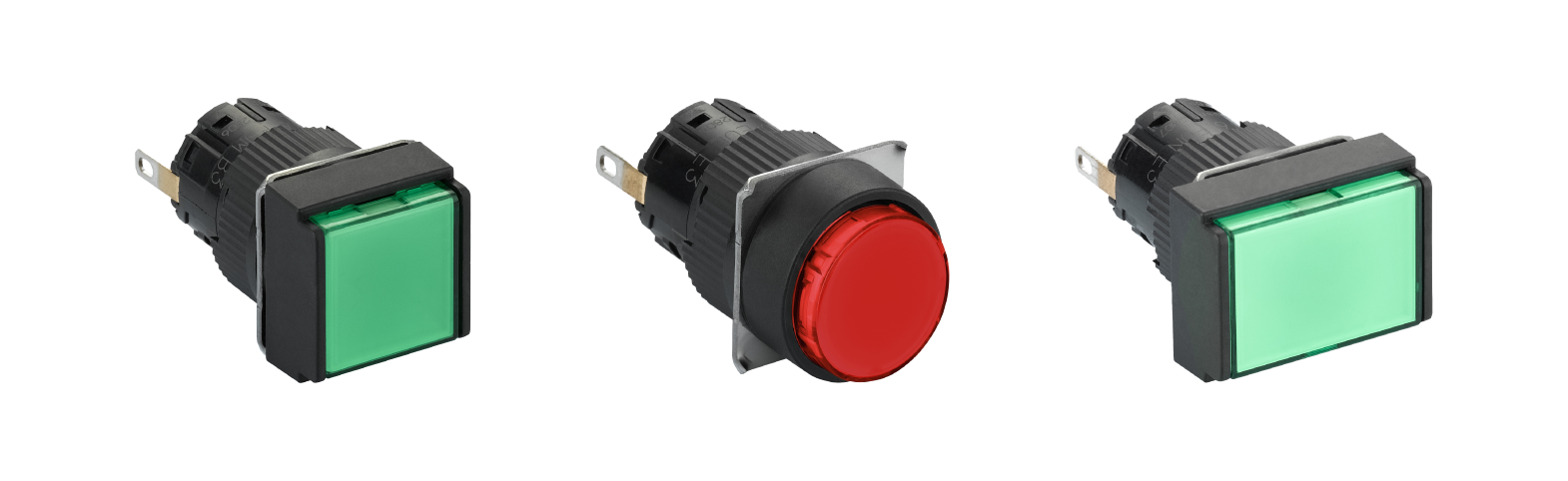

Harmony XB6

The modular and monolithic range of Ø 16 mm plastic control and signaling offers modular and monolithic designs that provide flexibility and simplicity of setup in industrial and commercial applications.

Specifications :

  • Ø 16 mm plastic pushbuttons, switches, and pilot lights

Features :

  • Complete products
  • Products for customer assembly using separate parts and common accessories.
  • Circular, square or rectangular heads.
  • Solder tab connections (compatible with Faston connection for contact function) or pins for printed circuit board connection.
  • Degree of protection: IP 65
  • Certifications CE, UL, CSA, CCC.
  • Pushbuttons with spring return
  • Selector switches and key switches, 2 or 3 positions
  • Mushroom head pushbuttons
  • Emergency stops

Benefits :

  • Compact, the Harmony Ø 16 mm range is specifically designed for applications where the surface area is restricted.
  • This range combines simplicity of setup and flexibility.
  • Improved security thanks to finger-safe contact blocks and light modules
  • The IP 65 degree of protection enables it to be used in all types of applications.

Applications :

  • Industry: Small finishing machines. Local and remote control panels.
  • Buildings: Control boards, surveillance rooms, alarms.
  • Tertiary: Laboratories and medical instrumentation. Transport. Small electronic equipment.

Enquiry now
