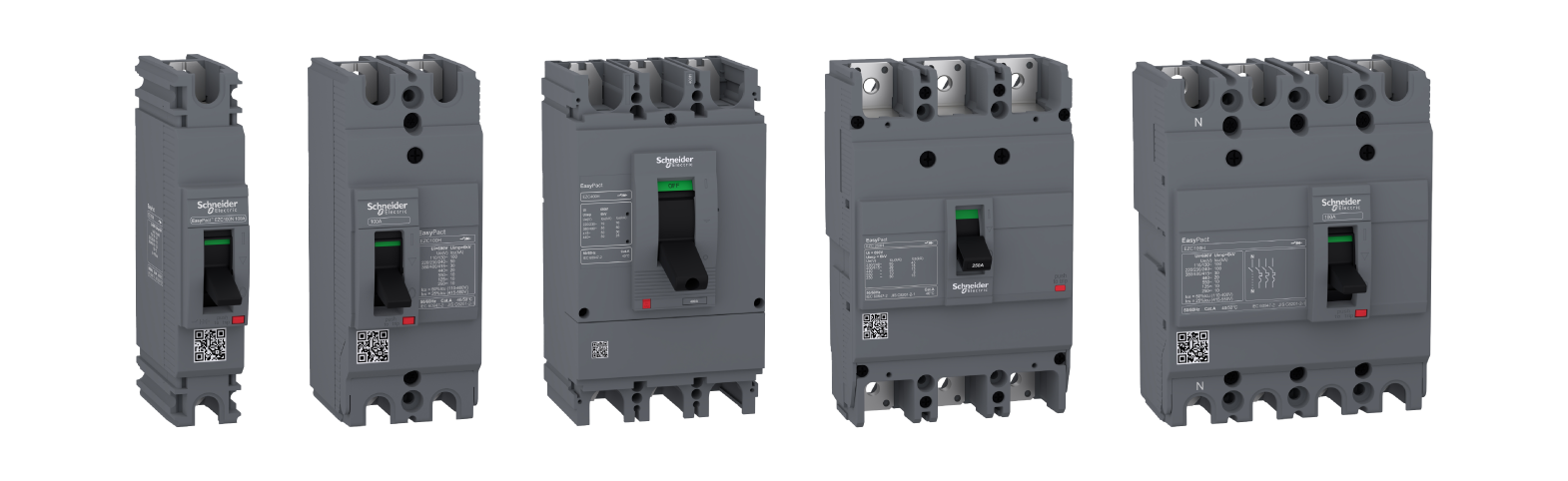

Specifications :

• Moulded case circuit-breakers from 15 to 400 A
• Poles description : 1P, 2P, 3P, 4P
• Earth-leakage protection : With, Without

Features :

• Rated current:from 15 to 400A
• Breaking capacity from 7,5 to 50 kA at 400/415V
• 1, 2, 3 and 4-pole frame
• 3 frame sizes from 100 and 400A
• earth-leakage built into 250A frame
• field installable auxiliaries and accessories
• Compliance with worldwide Standards:CEI 60947-1 et 2, UL508 / CSA22-2 (Easypact 250), JIS 8370
• CE & CCC marking

Benefits :

• It's so Easy and simple With 3 sizes, Easypact is the easy and simple solution to answer all the needs in terms of low voltage protection. Easy to choose, easy to install and easy to use, Easypact is easy from start to finish.

Applications :

• Housing installations
• Industrial and tertiary sites

Enquiry now

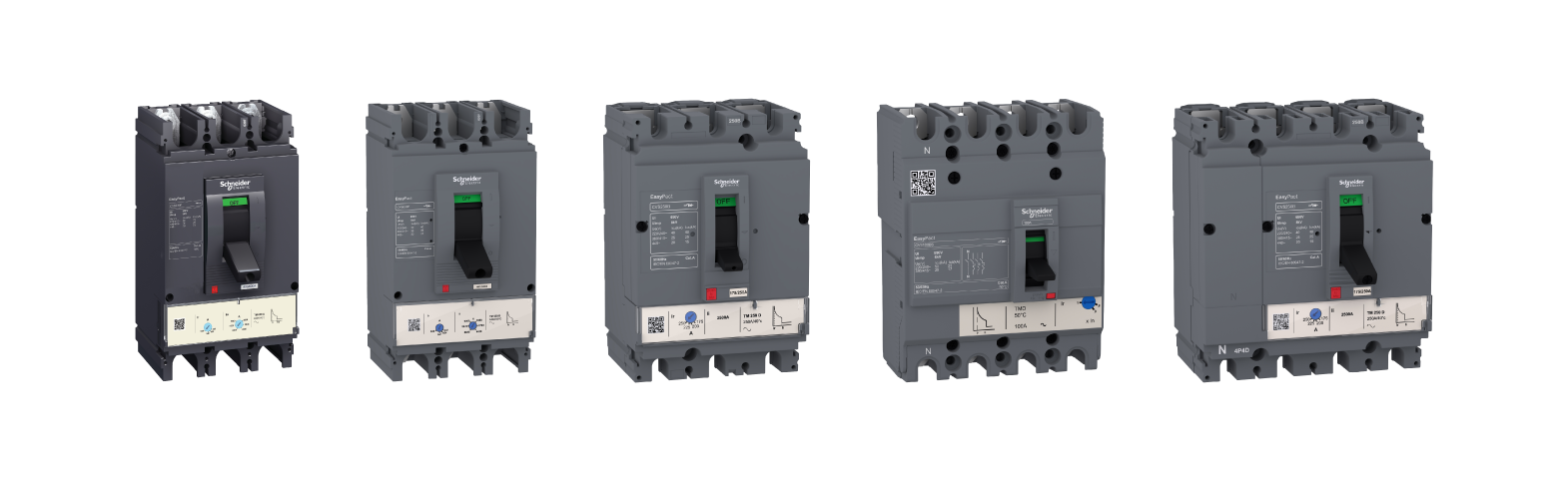

Specifications :

• MCCB with adjustable settings, rated for 100 to 1250 A
• Poles description : 3P, 4P
• Earth-leakage protection : Without

Features :

• Rated current from 16 to 630 A
• Breaking capacity from 25 to 50 kA at 400/415 V
• 3 and 4 pole versions
• 3 frame sizes
• Thermal-magnetic and electronic protection available for the entire range
• Extended, adjustable thermal protection from 0.7 to 1 time (TMD) or 0.5 to 1 time (electronic) the rating of the trip unit
• Common accessories and auxiliaries with other Schneider Electric MCCB offers
• Suitable for isolation
• Earth-leakage protection by associated Vigi Module
• Switch-disconnector versions are also available
• Compliance with international standards: IEC 60947-2, CCC, EAC, and other local certifications
• Green Premium product

Benefits :

• Panel builders
• End users
• OEMs
• Contractors

Applications :

• Buildings
• Industry
• Power

Enquiry now

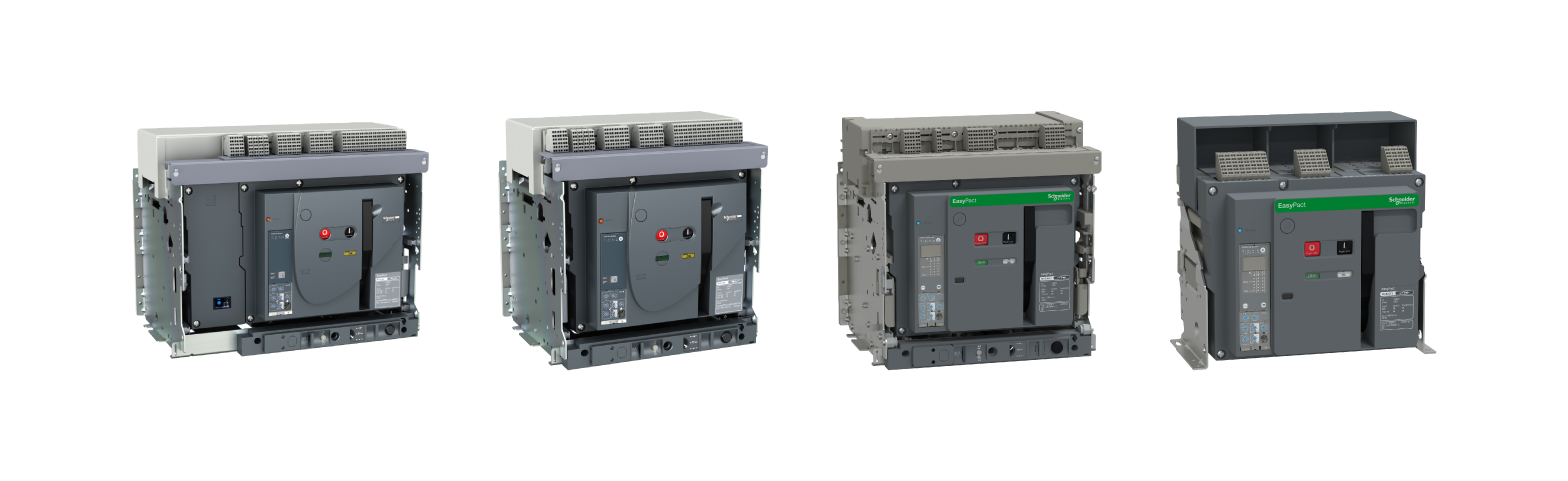

EasyPact MVS is a range of LV power circuit breakers and switch-disconnectors designed to optimize cost and contribute to the safety and reliable performance of your electrical distribution network. The solution covers ratings from 800 to 4000 A in one single frame size.

Specifications :

• Power Circuit Breakers 800 to 4000A

Features :

• Conforms to IEC 60947-2 &3
• Single frame size for full range
• Icu = Ics = Icw (1sec) = 50 kA offers complete discrimination with the downstream breakers.
• Suitability for 690V applications
• Intelligent ET range of trip systems with current & voltage measurements.
• All 4 pole breakers equipped with adjustable neutral protections
• High electrical & mechanical maintenance free endurances
• Modular type front fittable accessories.
• Ensures safety with ready to close contact, multiple locking options, safety shutters, etc.
• Suitable for copper and aluminium terminations
• Flexibility to change customer terminal orientation- Horizontal to vertical & vice-versa.

Benefits :

• EasyPact MVS offers reliable protection in LV distribution networks assuring continuity of service. Single frame size optimizes switchboard dimensions for complete range from 800 to 4000A.
• EasyPact MVS will help to optimize installation & maintenance costs. EasyPact MVS inherits key values - Safe, Reliable, Simple & Affordable.

Applications :

• Buildings
• Industrial sites
• Electrical Utilities and distribution
• Generator protection

Enquiry now

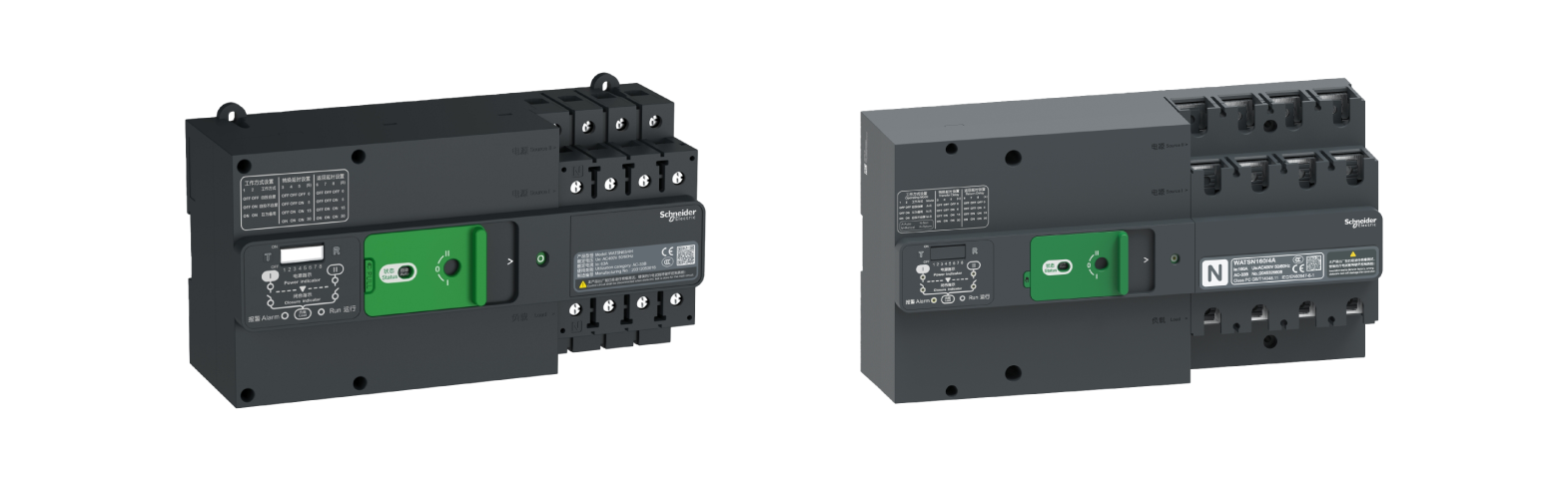

Specifications :

• Class PC (switch-disconnector type): protection of downstream line by circuit-breaker required
• Automatic (ATSE) or remote (RTSE)
• ATSE : fully autonomous automatic operation enabled
• RTSE : automatic operation requiring connection to a controlling device
• Poles description : 2P, 3P. 4P
• Rated operation current : 63A, 160A, 250A, 630A

Features :

• Rated operating voltage: 380 to 415V (L-L)
• 3 positions : OFF, Source 1, Source 2
• suitable for isolation, can be padlocked in OFF position
• Utilization Category: AC-33B
• compact housing: 100 A rating suitable into 400mm wide enclosure
• response time : 100 milliseconds, thanks to solenoid drive
• Compatible with Modbus digital connection
• CCC certified
• Sustainability : Green Premium label certified

Benefits :

• reliabilty, strong short circuit withstand capabilities.
• quick selection: all in one solution, for,multiple applications
• Green Premium sutainability label awarded.
• simple wiring, reducing panel cost and labor
• Replacement function module providing efficacy.
• reduced panel cost and space occupation
• digital connectivity enabling in-depth data analysis

Applications :

• Commercial buildings
• Residential buildings
• Infrastructures
• Plants and other industrial premises
