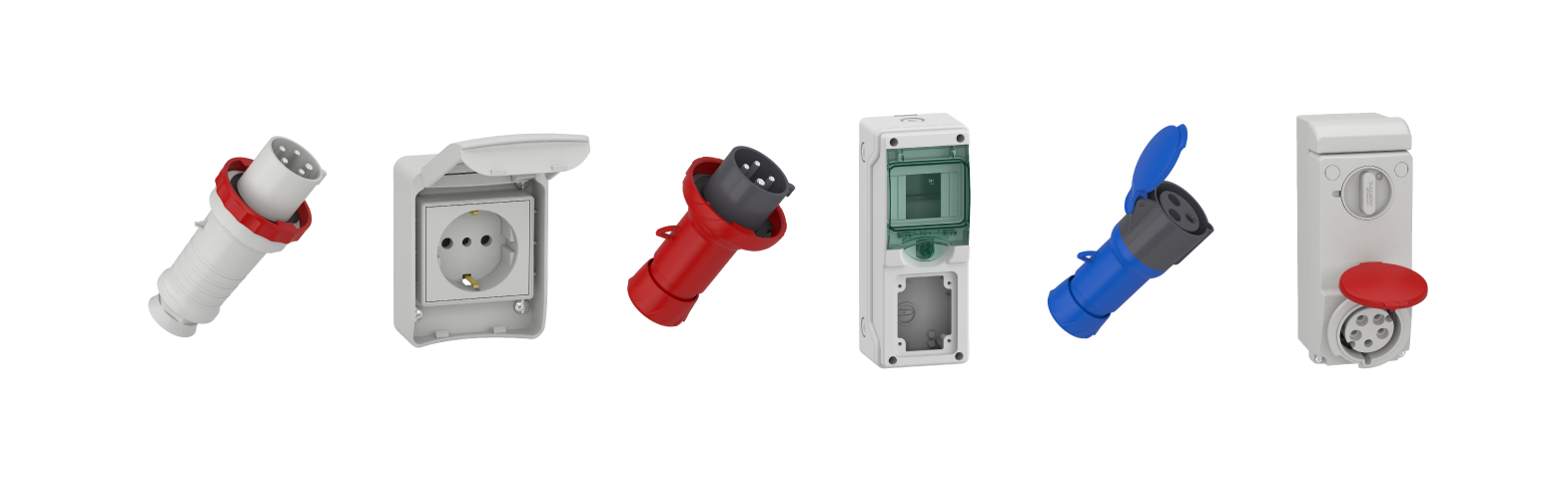

Specifications :

• Poles description : 2P + E, 3P + E, 3P + N + E
• Plug socket, control station shape : Angled,Straight,90° angled
• Rated current : 16A, 32A, 63A, 125A
• Rated opertaional voltage: 100...130V, 200...250V, 380..415V, 380...440V, 480...500V
• Ground lug clockwise position : 3h, 4h, 6h, 7h
• Connections-terminals : Captive screws, Fast connection
• Ip degree of protection : 1P44, IP67

Features :

• Wide range: SPN, TPN, PPI, Flexi, PSG, VTPN DB (up to 250A MCCB Incomer), Enclosures, P&S Units.
• Ingress Protection: Single Door – IP30, Double Door – IP43, Tested and Validated by CPRI
• Impact Protection: Single Door – IK08, Double Door – IK09, Tested and Validated by ERDA
• Designed and Manufactured as per IS8623
• Aesthetically superior DB with unique rounded corners and powder coated with RAL 9003 white color
• 15% more wiring area
• Reversible Door
• Enhanced safety with Isolated N-bar, FRLS wire set, Insulated phase busbars, Removed all injurious sharp corners, Plastic stud for CP removal
• Revolutionary Gasket: Enhanced IP protection and higher service life over typical traditional gasket
• RoHS and REACH Compliance

Benefits :

• Spectacular Design - Blends seamlessly with interiors
• Maximized Wiring Space - Convenient and Safe wiring
• Adaptable - Total Flexibility for ease of installation and usage
• Robust Architecture - Perfect blend of Strength & WeightTechnically Proven - Safety Guaranteed
• Technically Proven - Safety Guaranteed

Application :

• It is housing to mount multiple electrical Modular devices (like MCBs, RCCBs, Surge Protection Devices, Change over switch, Isolators, indicating devices etc.) used for distribution, protection , control and automation at final distribution level.
