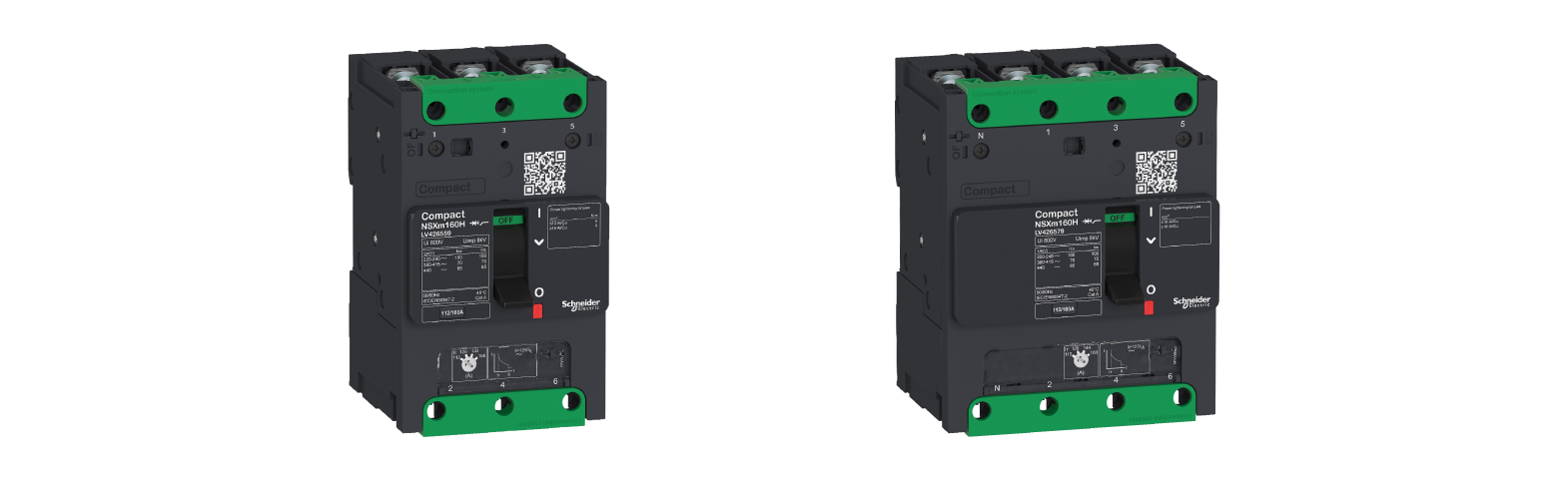

Specifications :

• Compact NSXm molded case circuit breakers up to 160A
• Number of poles : 3P, 4P
• Rated current : 32A, 40A, 63A, 80A, 100A, 125A, 160A
• Breaking capacity : 16kA, 25kA, 36kA, 50kA, 70kA
• Breadking capacity code : B, E, F, H, N

Features :

• Nominal current: 16 to 160 A
• Five breaking capacities : 16, 25, 36, 50, 70 kA at 415 V
• Insulation voltage up to 800 V AC
• One physical size from 16 to 160 A
• 3 and 4 pole versions available
• Isolation with positive break indication
• Thermal-magnetic protections and switch disconnectors
• Optimized range of auxiliaries and accessories field installable
• Compliance with international standards: IEC 60947-1 and 2, CCC, EAC and other local certifications
• Compliance with specifications of marine classification companies (MCCB): Bureau Veritas, Lloyd’s Register of Shipping, Det Norske Veritas and RINA

Benefits :

• Improve productivity by saving up to 40% time spent on mounting and cabling with built-in DIN rail, EverLink™ connectors, and spring-type auxiliaries
• Optimized panels with cascading
• Ensure reliable connection over time using creep-compensating technology — EverLink™
• Enhanced continuity of service with outstanding discrimination
• Flexibility to choose rotary handles – direct, extended and side
• Small footprint (3P) - H: 137mm x W: 81mm x D: 80mm

Applications :

• Standard applications in industries, buildings, infrastructures
• Low‑voltage switchboards (as feeder in drawers) for power control centers
• Low‑voltage panelboards (as incomer) or subpanelboards (as feeder) for electrical distribution in small, medium, and commercial buildings
• Machines (as incomer) — HVAC, packaging, lifting, pumping, conveying
• Control panels — Water treatment, tunnel, in automation solutions

Enquiry now

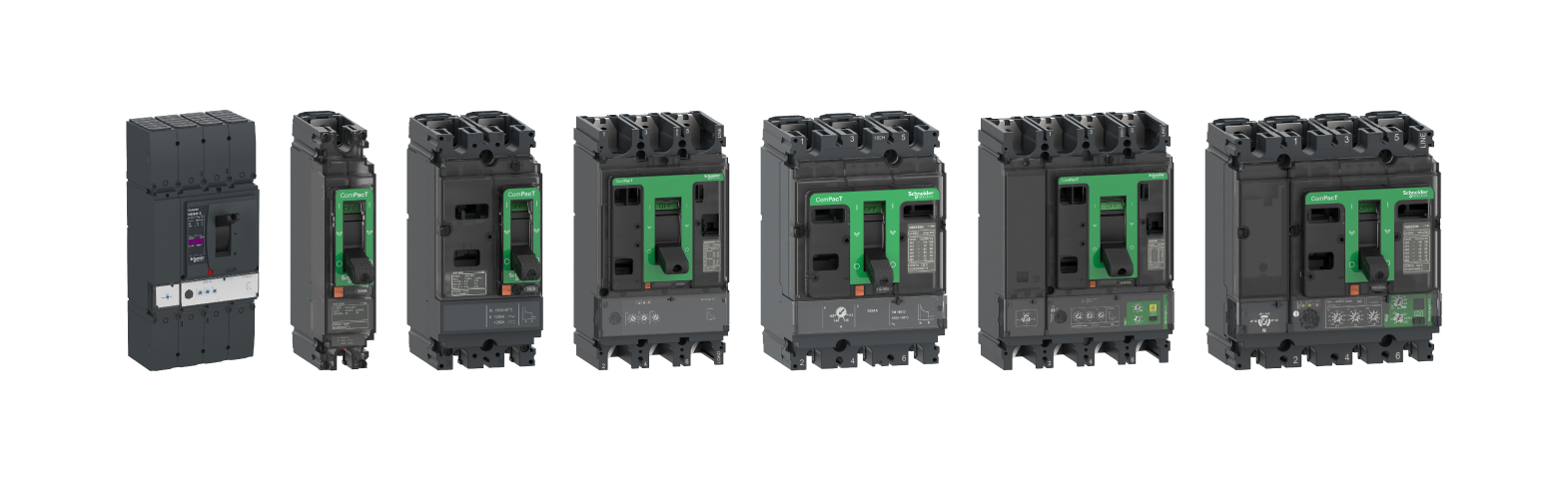

Specifications :

• Flexible installation in any position: switchboard or wall-mounted
• Nominal current: 16 to 630 A
• 9 breaking capacities for the 2 sizes of circuit breakers:
• up to 250 A: 25, 36, 50, 70, 100, 150, 200 kA at 415 V
• up to 630 A: 36, 50, 70, 100, 150, 200 kA at 415 V
• both size of circuit breakers with 75 and 100 kA at 690 V
• 1, 2, 3, and 4 pole versions available
• Large range of electronic and thermal-magnetic protections
• Advanced trip unit with integrated power metering: I, U, P, E, THD, f, CosPhi
• Interchangeable trip-units to upgrade your panel with smarter functions
• Plug and ready wiring system and communicating accessories
• A wealth of options for auxiliaries and accessories (field installable)
• Integrated earth leakage protection via MicroLogic Vigi (earth leakage circuit breaker - ELCB)

Features :

• ensuring optimized selectivity and coordination with upstream and downstream Schneider Electric breakers.
• providing corrective, preventive, and predictive maintenance for asset management, thanks to our advanced MicroLogic trip units.
• sending alerts as well as a local indication, with the new wireless auxiliary contact.
• through integrated earth leakage protection.
• with preventive maintenance.
• thanks to Everlink power connections.

Enquiry now

Specifications :

• Number of poles : 3P, 4P
• Device application : Distribution, Motor
• Range of product : ComPact NSX100...250, ComPact NSX400...630
• Rated current : 6.3A, 12.5A, 16A, 25A, 50A, 63A, 80A, 100A, 125A, 150A, 160A, 200A, 250A, 400A, 630A
• Trip unit technology : Electronic, Magnetic, Thermal-magnetic

Feature :

• Integrated monitoring
• New breaking capacities
• 100% service continuity
• 100% service continuity

Benefits :

•  Safety and protection
• Energy measurement and control
• Increased energy availability

Application :

• Standard applications :  industries, buildings, infrastructures
• Specific applications demanding high performance at controlled cost : processes, steal industry, maritime, disturbed environment
• Motor protection
• Control and isolation using switch disconnectors
• Source-changeover systems

Enquiry now

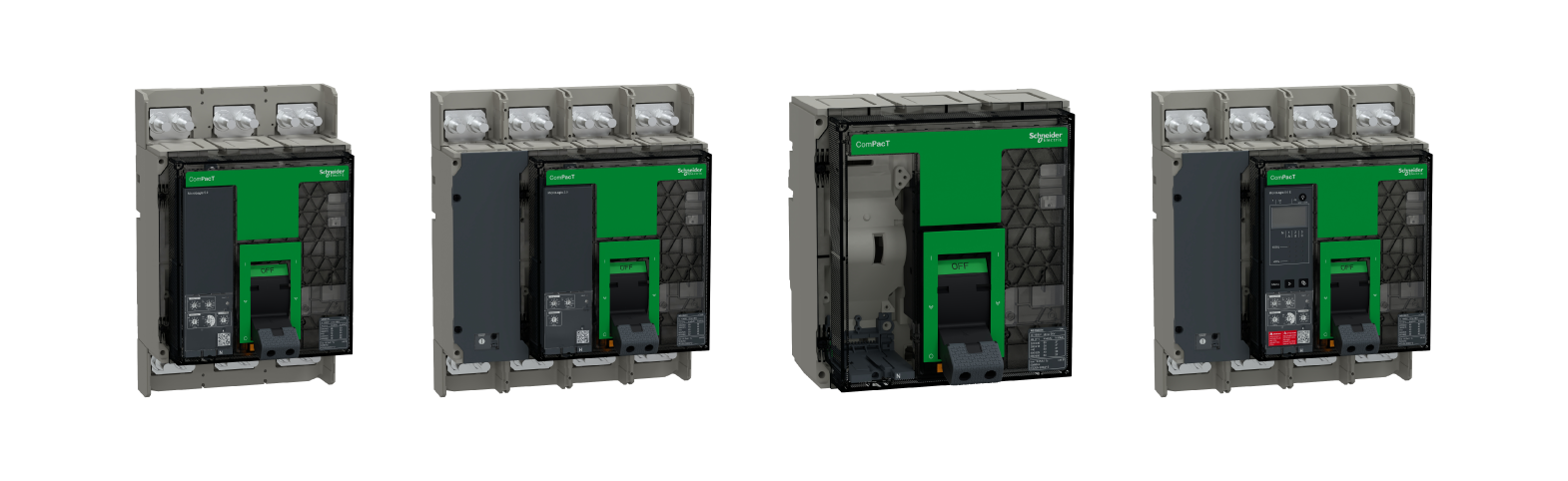

Specifications :

• Circuit-breakers, to protect lines up to 3200 amps
• Number of poles : 3P, 4P
• Rated current : 630A, 800A, 1000A, 1250A, 1600A

Feature :

• TBD

Benefits :

• Maximize power availability
• Protection begins with prevention
• Efficiency
• Reliability
• Connectivity

Enquiry now

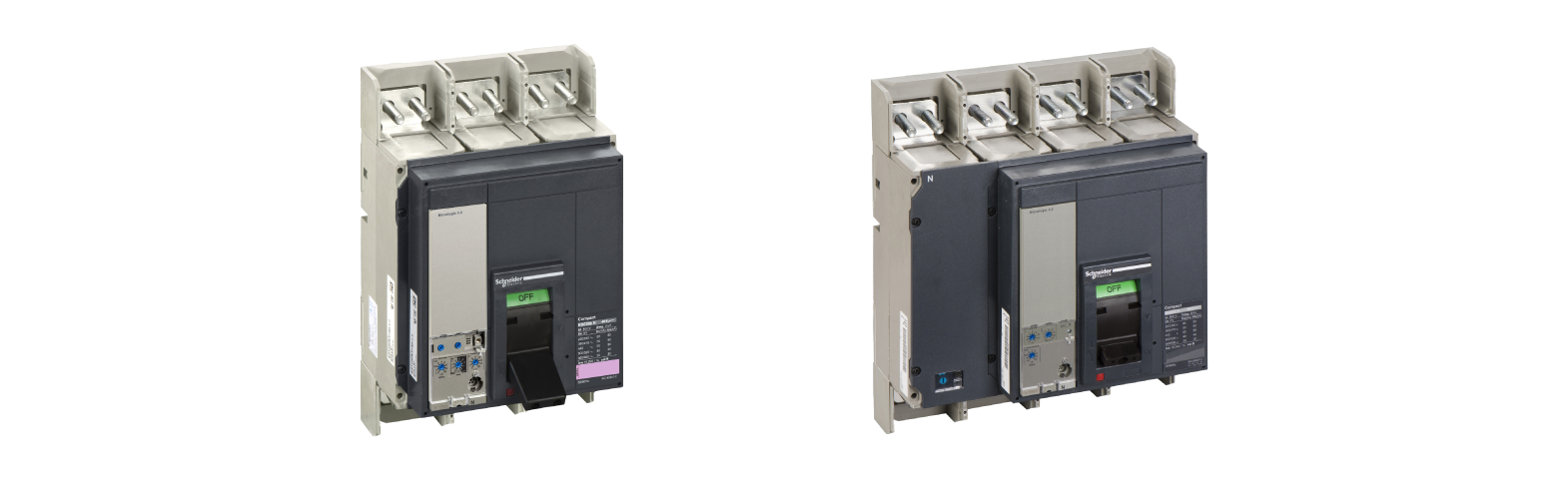

Specifications :

• 630 A to 3200 A moulded case circuit-breakers
• Number of poles : 3P, 4P
• Rated current : 630A, 800A, 1000A
• Breaking capacity : 50kA, 70kA, 150kA
• Breaking capacity code : H, L, N
• Trip unit protection functions : LI, LSI
• Trip unit name : MicroLogic 2.0, MicroLogic 5.0

Feature :

• Nominal current from 630 to 3200 A
• 2 breaking capacities:200kA at 440V - 75kA at 690V for 630 and 800A LB frames
• 4 breaking performances from 50 to 150 kA at 415 V
• Voltage rating:up to 690 V
• 2 physical sizes from 630 to 3200 A
• A single pole pitch of 70 mm
• 3 and 4-pole versions
• solution with positive break indication
• 4 Micrologic control units enriched by measurement, energy management and network analysis functions
•  Earth leakage protection built into electronic protection Wide range of common auxiliaries and accessories interchangeable on site
• Compliance with international standards IEC 60947-1 and 2, IEC 68230 for type 2 tropicalisation
• Compliance with specifications of marine classification companies:Bureau Veritas, Lloyd’s Register of Shipping, Det Norske Veritas, etc.

Benefits :

• In a strong position because of its 10 years of success responsible for its reputation for excellence, the Compact NS system now takes another step ahead to cover strong currents from 630 to 3200 A. This range extension makes it a totally complete and consistent system, thus

Application :

• Electrical network protection
• Motor protection
• Generator protection

Enquiry now

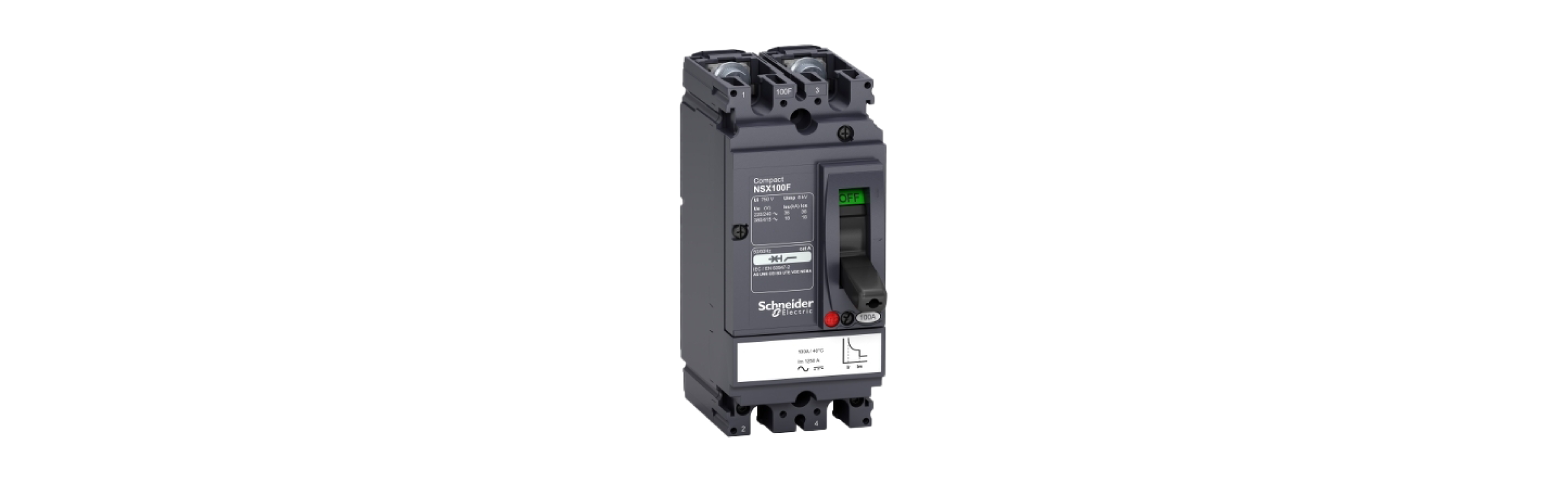

Compact NSX DC & DC PV is a range of molded case circuit breakers and switch disconnectors, easy to install, optimized for ideal size and breaking capacities dedicated for direct current applications.

Specifications :

• Circuit-breakers and switch-disconnectors, to protect lines up to 1500 A, in direct current (DC) and photovoltaic (PV) applications
• Flexible installation: any position; switchboard or wall-mounted
• Breaking capacities for the 2 sizes for the molded case circuit breakers (MCCB)
• Compact NSX DC up to 1200 A: up to 100kA and to 750 V DC
• Compact NSX DC PV up to 500 A: up to 10kA and to 1000 V DC
• Rotary handle mounting style : Direct, Extended
• Rotary handle mounting location : Front
• Handle colour : Black
• IP degree of protection : IP40, IP43, IP55

Feature :

• Switch disconnectors: 16 A to 1500 A
• 1,2, 3 and 4 pole versions available
• Manual and remote operation
• Fixed and withdrawable versions
• Accessories for insulation and series or parallel connection of pole, suited to the particularities of DC applications, including heat sinks, phase barriers, and terminal shields

Benefits :

• Usable in any position
• Three standardized frame sizes for your convenience
• Select, configure, and generate BOM more efficiently and accurately with the Schneider Electric tool Mypact

Application :

• Battery protection
• UPS
• Generator
• Photovoltaic applications

Enquiry now
