DIN rail system up to 63 A

The new Acti 9 range for low voltage DIN rail system up to 63 A. Protection by Miniature Circuit-Breaker (MCB) in all industrial and commercial buildings. Fully consistent with the entire Acti 9 range and easy to use, they provide you with enhanced protection and compliance.

Features :

• VisiSafe: for safe operation and maintenance work on circuits
• Class-2 insulation: continuous safety for operators and non-qualified personnel
• VISI-TRIP: detects faulty Miniature Circuit-Breaker outgoes quickly and reduces intervention time
• Fully immune add-on Residual Current Devices: better continuity of service, in particular for polluted networks and environments
• The circuit breaker, contactor, and impulse relay are all included in the Reflex iC60 all-in-one concept.
• Optimised design time, in particular for lighting solutions in buildings
• 50% fewer connections with the Reflex iC60 all-in-one concept
• Flexible, upgradeable solutions and simple operations
• Easier status diagnosis via product front face indications
• Multiclip distribution systems suitable for upgrading electrical facilities, add-ons, adaptation, phase balancing
• Easy to adapt to constraints and last-minute changes in the tertiary and industrial fields
• Operating and control mode selection
• Building management system interfacing

Benefits :

• Up to 40% reduction in Control and Power wiring. Up to 25% savings on Installation cost by replacing conventional electrical panels with distribution boards.
• Up to 15% time savings on design and installation by using smart connections with pre-fabricated wiring
• Up to 35% reduction in space utilisation by using modular FD range

Applications :

• Industries
• Commercial Building

Download Catalogue

Enquiry now

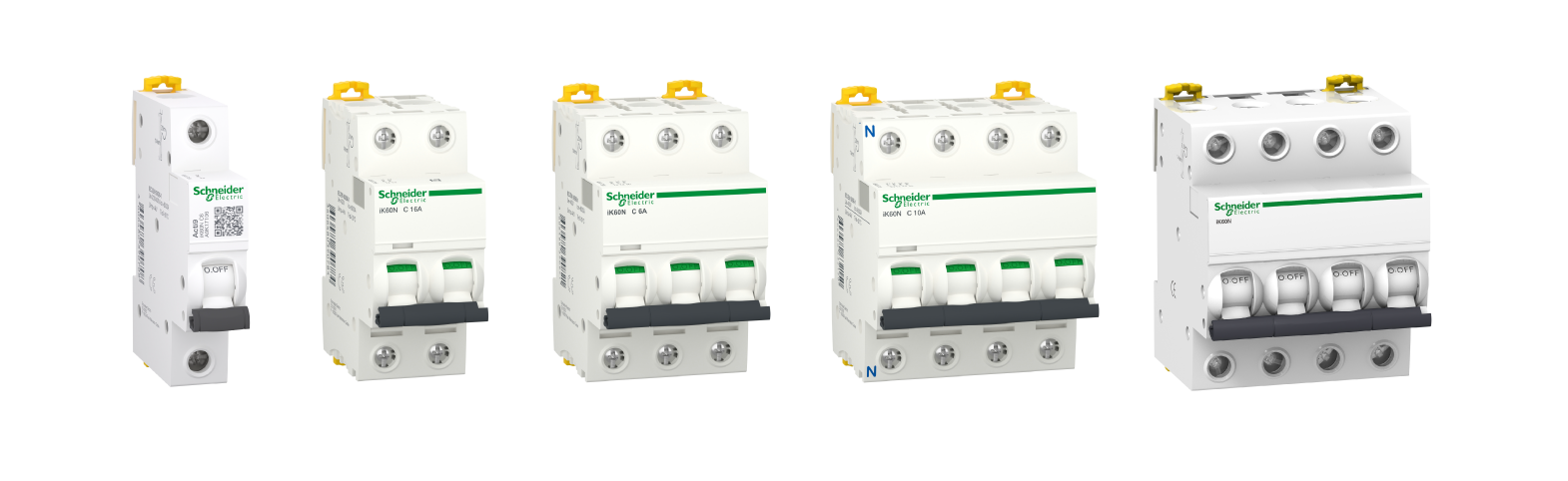

Specifications :

• Poles description : 1P, 2P, 3P, 4P
• Rated current : 0.5A, 1A, 2A, 3A, 4A, 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A
• Curve code : B, C, D
• Breaking capacity : 6kA, 10kA, 15kA, 10000A
• Rated operational voltage : 12...48V, 60V, 100...125V, 220...240V, 220..250V, 240V, 380...415V, 415V
• Newtwork type: AC, DC

Features :

• Nominal current: 0.5A to 63A
• Large choice of breaking capacities and tripping curves: B,C,D..
• Compliance with standards: IS/IEC 60898, IEC/EN 60898 and IEC 60947-2
• ISI and CE marked
• Suitable for isolation in accordance with industrial standards: IEC 60947
• Optional add-on earth leakage modules: xC60 Vigi
• Suitable for additional Protection and Indication auxiliaries: ON/OFF, Trip, Shunt trip, Undervoltage trip, Overvoltage trip, Communication Auxiliary
• Suitable for DC application: 60Vdc per pole

Benefits :

• Ensures no accidental contact with live part – Finger-proof IP-20 terminals
• Avoids false insertion of cables and loose termination with Pull up terminals
• Total Flexibility : Line-Load reversibility
• Low cost with higher performance: Cascading. Cascading charts available From ACB-MCCB-MCB level.
• Reduce Downtime: Discrimination. Discrimination charts available From ACB-MCCB-MCB level
• Easy Installation: Bi – connect terminals
• Increased service life: Fast Closing mechanism
• Environmentally friendly with 100% recyclable & recoverable materials.

Applications :

• Protection of wires and cables against overload and short circuit current fault
• Protection of people against indirect contact in IT and TN earthing systems
• Suitability for isolation in the industrial sector to IEC/EN 60947

Download Catalogue

Enquiry now

Specifications :

• Poles description : 1P, 2P, 3P,3P + N, 4P
• Rated current : 63A, 80A, 100A, 125A
• Ambient air temperatur for opertaion: 30° C, 40° C
• Curve code : B, C, D
• Breaking capacity : 3kA, 4.5kA, 6kA, 10kA, 15kA, 10000A, 15000A
• Rated operational voltage : <= 144 V, <=250 V, <=375 V, <=500 V, 12...48V, 60V, 100...125V, 220...240V, 220..250V, 240V, 380...415V, 415V

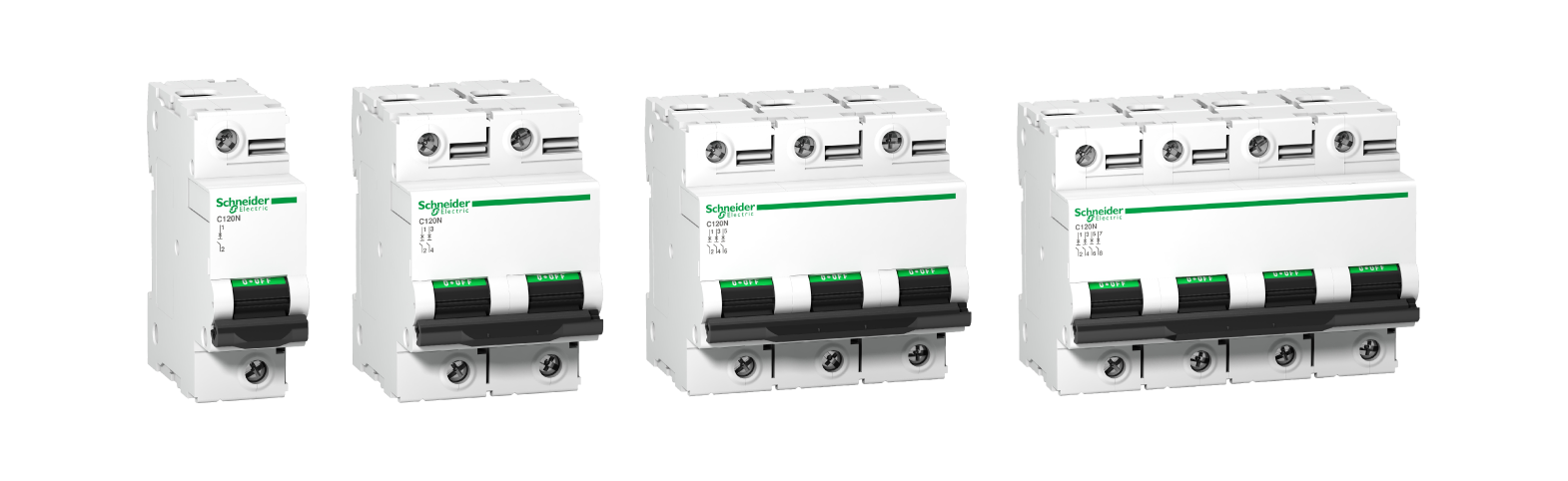

• Device short name: C120H, C120N

Features :

• Nominal current: 10 to 125 A
• Large choice of breaking capacities and tripping curves: B, C, D…
• Compliance with standards: IEC EN 60898 or IEC 60947-2 depending on the version, certified by national official authorities
• Suitable for isolation in accordance with industrial standards: IEC 60947
• Operating voltage: up to 440Vac, insulation voltage: 500V
• Optional add-on earth leakage modules: C120 Vigi
• Optional auxiliaries: indication of state and tripping, shunt trip, undervoltage trip, overvoltage trip

Benefits :

Quality without boundaries

The C120 circuit-breaker, derived directly from the C60, is recognised in over 100 countries for its quality and the breadth of its range, making it an indispensable component for developing low voltage installations with complete peace of mind.

Applications :

• Protection of electrical circuits in all industrial and tertiary buildings

Download Catalogue

Enquiry now

Specifications :

• Poles description : 1P, 2P, 3P,3P + N, 4P
• Rated current : 10A, 16A, 20A, 25A, 32A, 63A, 80A, 100A, 125A
• Breaking capacity : 6kA, 10kA, 20kA, 50kA
• Rated operational voltage : <= 144V, <=250V, <=375V, <=500V, 12V, 110...130V, 125V, 220...240V, 380...415V, 440V, 500V

Features :

• Nominal current: 10 to 125 A
• Provides the user with a large choice of breaking capacities and tripping curves: B, C, D...
• Fully Compliant with standards: IEC 60947-2, as certified by national official authorities
• Suitable for isolation in accordance with industrial standards: IEC 60947
• Operating voltage: up to 500 VAC
• Insulation voltage: 690 VAC
• Provides installers with optional add-on earth leakage modules: Vigi NG125
• Several optional auxiliaries: indication of state and tripping, shunt trip, undervoltage trip, overvoltage trip.

Benefits :

• Highly robust
• Ideal if you’re looking to add protection to industrial buildings
• Highly suitable for tertiary buildings
• Perfect for even the most demanding electrical installations
• Provides installer with the simplicity of modular installation.

Applications :

• Industry
• Building
• Data Centre

Download Catalogue

Enquiry now

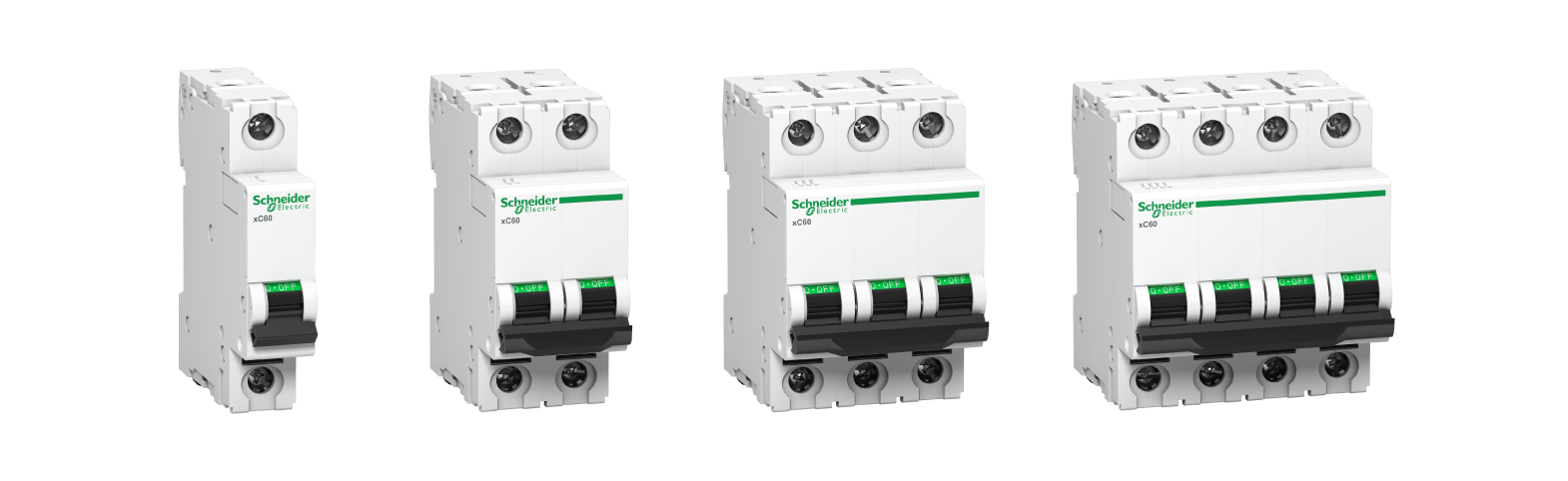

Specifications :

• Poles description : 1P, 1P + N, 2P, 3P, 3P + N, 4P
• Rated current : 1A, 2A, 3A, 4A, 6A, 10A, 13A, 16A, 20A, 25A, 32A, 40A, 50A, 63A
• Curve code : B, C
• Rated operational voltage : 230V, 400V

Features :

• Miniature circuit breaker up to 63A Acti9 K
