Specifications :

• Poles description : 1P, 2P
• Rated current : 0.5A, 1A, 2A, 3A, 4A, 6A, 10A, 13A, 16A, 20A, 25A, 32A, 40A, 50A, 63A
• Rated operational voltage: 250V, 500V

Features :

• Compliant with IEC/EN 60947-2
• Current ratings: 0.5 to 63 A
• Breaking capacities up to 20 kA

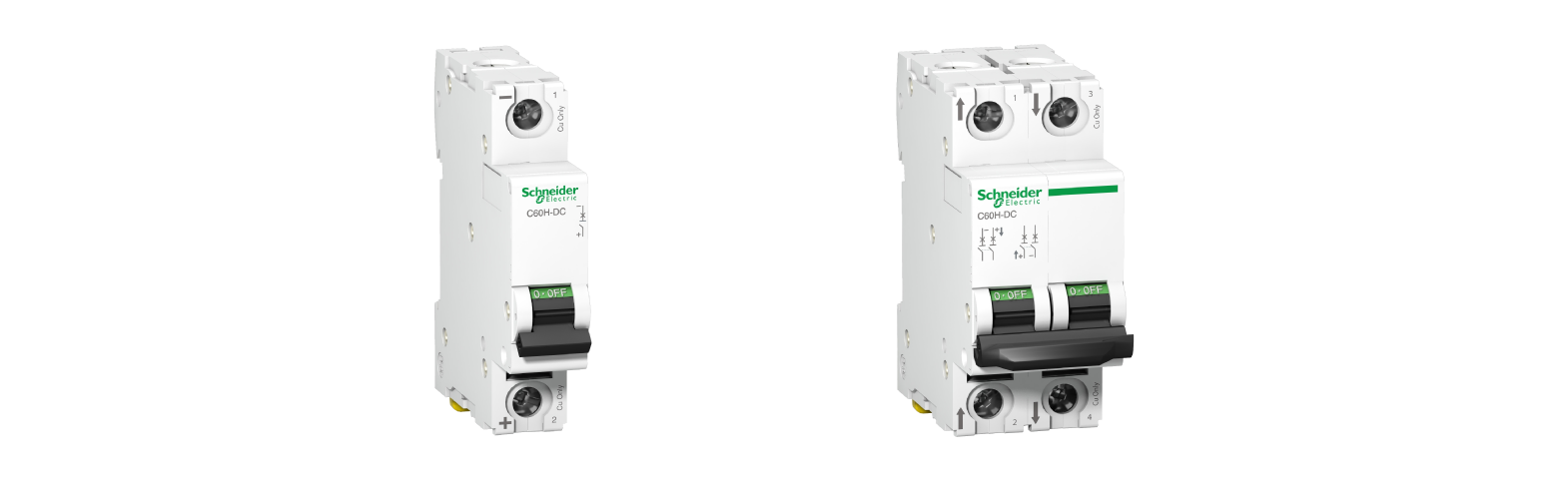

Acti 9 C60PV-DC: for operating voltages up to 800 V DC.
Especially suitable to protect cables between solar cells and inverters in photovoltaic generation systems

• Compliant with IEC/EN 60947-2
• Current ratings: 1 to 25 A
• Breaking capacity : 1.5 kA

Specifications :

• Poles description : 1P, 2P
• Rated current : 0.5A, 1A, 2A, 3A, 4A, 6A, 10A, 13A, 16A, 20A, 25A, 32A, 40A, 50A, 63A
• Rated operational voltage: 250V, 500V

Features :

• Maximum steady state voltage: 800 V DC, 1000 V DC
• Maximum discharge current Imax = 40 kA
• Surge Protection Devices should be installed in a switchboard inside the building. If the switchboard is located outside, it must be weatherproof.

Benefits :

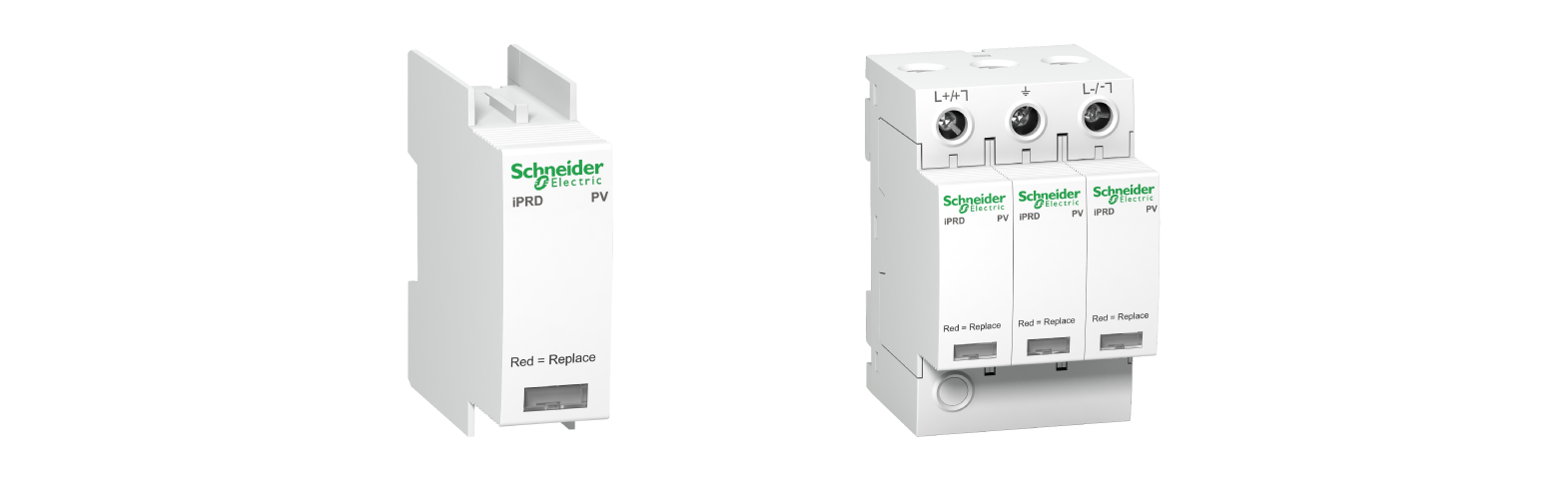

• Withdrawable Acti 9 iPRD-DC-PV Surge Arresters allow damaged cartridges to be replaced quickly
• They offer remote reporting of the "cartridge must be changed" message
• Simplified choice: optimised offer with 2 products
• Safety insured till the cartridge end of life:
  the thermal disconnector will open before their destruction.

Applications :

• AC/DC inverters
• Monitoring devices
• PV panels
• Other sensitive equipments powered by the 230 V AC electrical distribution network.
