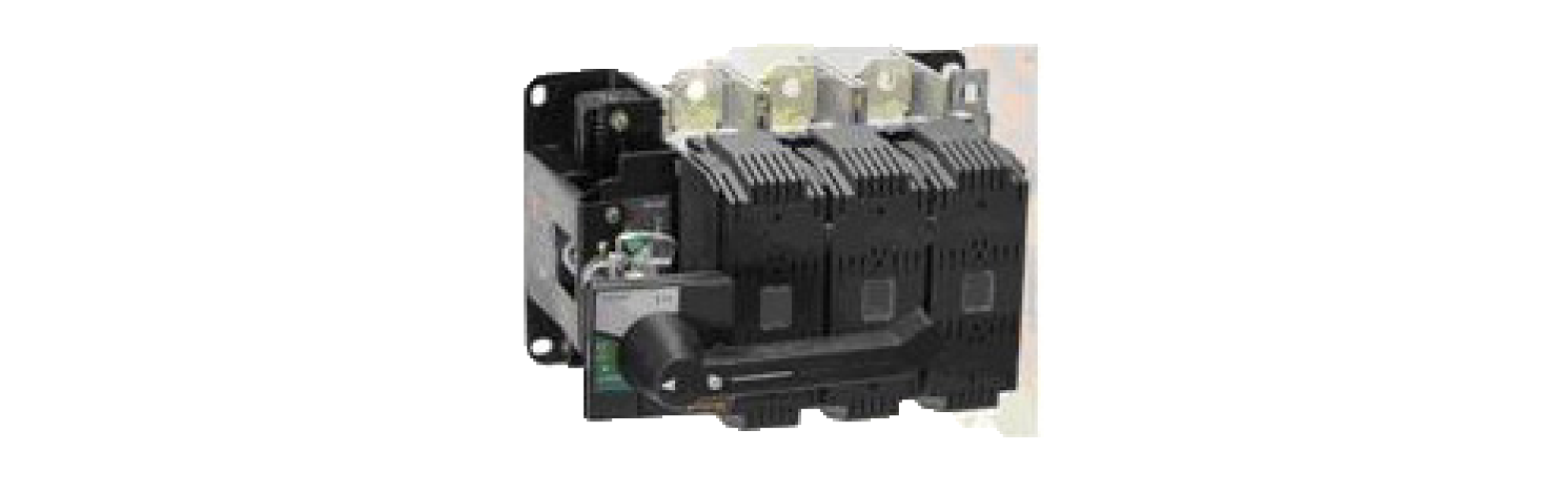

Specifications :

• 32 - 630A Switch Disconnector Fuse

Features :

• Nominal current In 32 – 630A
• Available in 11 current performances 32,63,80,100,125,160,200,250,315,400,630A.
• Available in 3P/4P variants.
• Modular pole type assembly.
• Site convertibility of fuse carrier from DIN to BS.
• Isolable Neutral link as a standard.
• Only SDFs give Icw performance.
• High short circuit making and breaking capacity.
• Site fittable accessories.

Benefits :

Fupact stands for innovation in terms of enduring reliability ,operational flexibility and fool-proof safety. Product is designed to excel in Indian conditions. It has passed the most stringent quality tests and go beyond the world wide standards.

Applications :

• Elecrical distribution network
• DG applications.
• Motor feeders.
• Capacitor feeders.
• AC/DC applications

Enquiry now

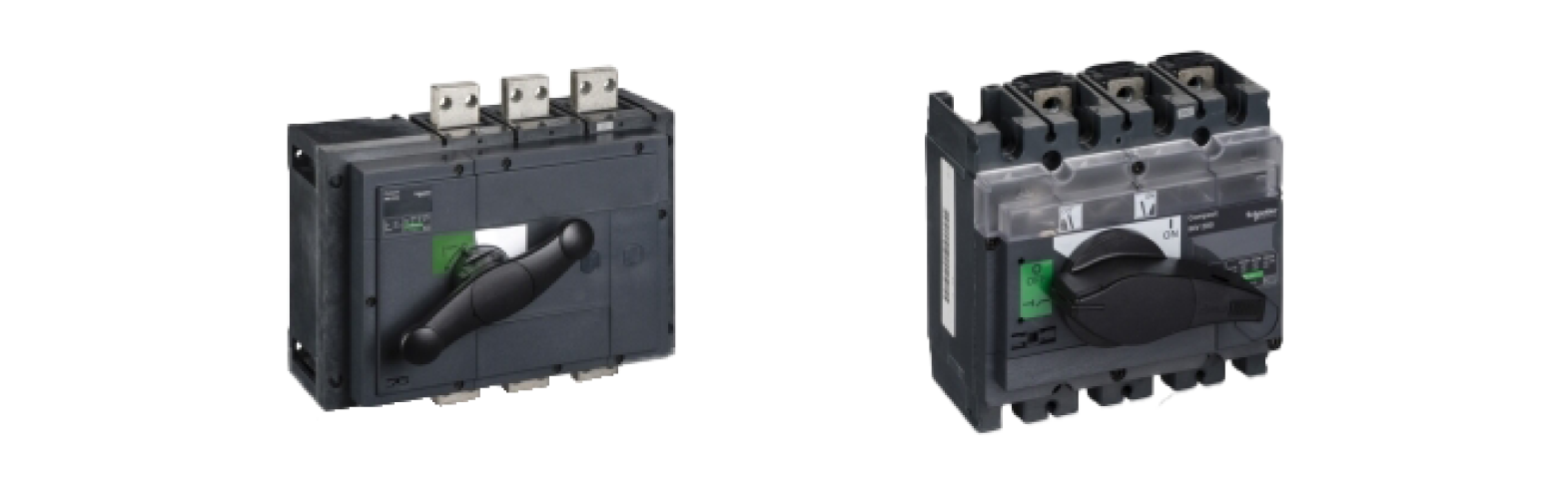

Specifications :

• Switch-disconnectors to interrupt lines up to 2500 A
• Poles description : 3P, 4P
• Handle colour : Black, Red

Features :

• Nominal current: 40 to 2500 A
• Rated operational current for AC22A, AC23A and DC22A, DC23A
• High short-circuit making capacity for the switch disconnector alone and with upstream protection circuit breaker
• High short-time withstanding current
• 3 and 4 pole versions available
• IP66 and IP55 local isolation enclosure
• Suitable for isolation with positive contact indication
• Locking by up to three padlocks or lead-sealed in the off position

Benefits :

• Optimize for safety
• Efficient installation

Applications :

• Power distribution incomers for large buildings (commercial buildings, offices, etc. )
• Sub-distribution incomers for mid-size buildings (hotel, hospitals, etc.)
• Final distribution outgoers and local isolation and for industrial applications
• Source-changeover systems : service sector (hospital operating rooms, computer rooms, etc.), industry (assembly lines, ship engine rooms, etc.), infrastructures (runway, railway, etc.)
• Specific applications: photovoltaic and emergency-off versions available
• Applications in the harshest environments (tunnels); IP66 enclosed

Enquiry now

Specifications :

• Number of poles : 3P, 4P
• Device application : Distribution, Motor
• Range of product : ComPact NSX100...250, ComPact NSX400...630
• Rated current : 6.3A, 12.5A, 16A, 25A, 50A, 63A, 80A, 100A, 125A, 150A, 160A, 200A, 250A, 400A, 630A
• Trip unit technology : Electronic, Magnetic, Thermal-magnetic

Feature :

• Voltage rating: 690 V
• Nominal current: 40 to 2500 A
• Categories: AC23A/AC22A
• No derating up to 60 °C
• Voltage impulse withstand: 8 kV
• Mounting on DIN rail (up to INS160) and on mounting plate
• Positive break indication (INS range) or visible isolation (INV range)
• 3 and 4-pole versions in the same volume
• Class 2 device on the front panel
• Front operating mechanism as standard and side operating mechanism as option (up to INS250)
• One-piece source changeover switch
• Remote indication thanks to auxiliary contacts
• Accessories in common with the range of Compact NS circuit-breakers
• Compliance with international standards IEC 60947-1 and -3, UL489 (up to 400 A), VDE 660 and 113, CNOMO.

Benefits :

• By adapting to a whole host of LV applications, the Interpact INS/INV switch-disconnectors offer all the safety that the user requires. Designed for maximum performance and safety, this comprehensive and homogeneous range operates with the connection accessories shared with the Compact NS range.

Application :

• Source coupling
• Local disconnection box
• Final distribution box
• Automation box
• Emergency stop switch

Enquiry now

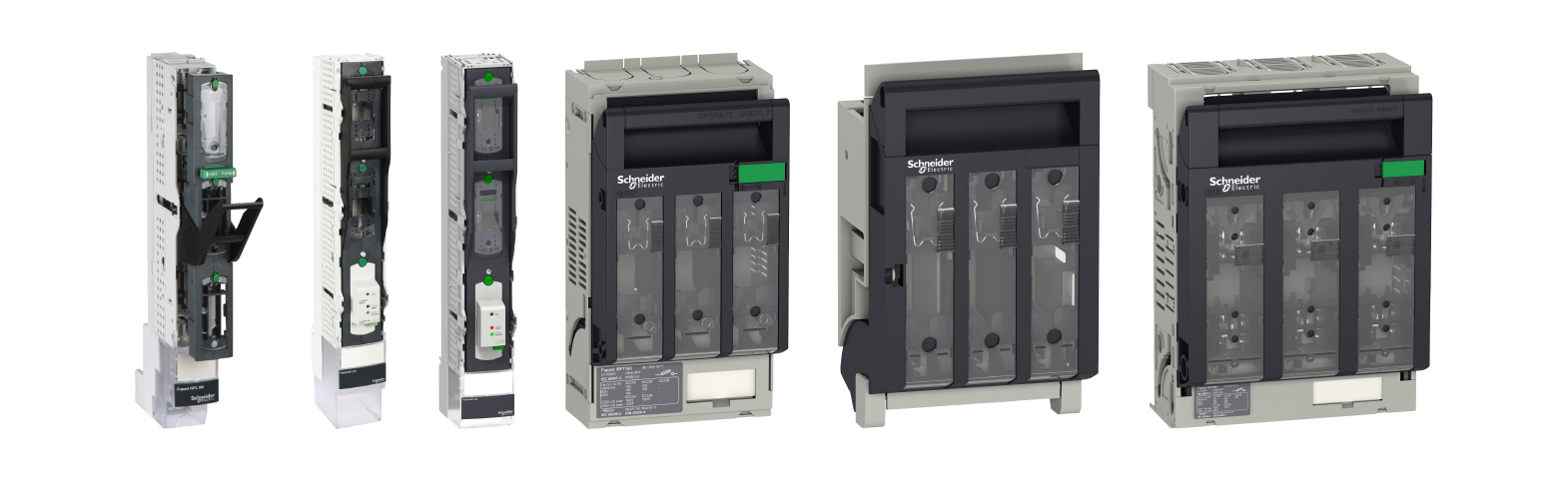

Specifications :

• Switch disconnector fuses and fuse switch disconnectors from 32 A to 800 A

Feature :

• Nominal current from 32 to 800 A
• Voltage rating up to 690 V (AC) and 750 V (DC)
• 3 and 4 pole version
• Indication by fuse operating mechanism
• Positive contact indication
• Fuse compartment with IP20 protection by insulating covers as standard
• Locking device to prevent access to fuses when the switch is in the "ON" position
• Upstream-downstream double insulation
• Reversed power supply
• Compliance with standards IEC 947-1,-3,-5, EN 60947-1,-3 and -5, IEC 60269-1 to -4, EN 60269-1 to -4, BS 88-1 to -4, DIN 43620, NFEN 60269-1 to -4, NFC 63220
• Nominal current from 32 to 800 A
• Nominal current from 32 to 800 A
• Available in 7 sizes
• Can be used for all NFC, BS, DIN fuses
• Nominal current from 100 to 630 A
• 3 sizes in ISFT (100, 160, 250-630 A)
• 2 sizes in ISFL (160, 250-630 A)
• Several installation types: mounting plate, DIN rail (ISFT) or on busbar (ISFT/ISFL)
• Connection by cables or on busbar

Benefits :

• By adapting to a whole host of LV applications, the Fupact fuse switch-disconnectors offer all the safety that the user needs.

Application :

• Power distribution
• Motor protection
• Public distribution

Enquiry now

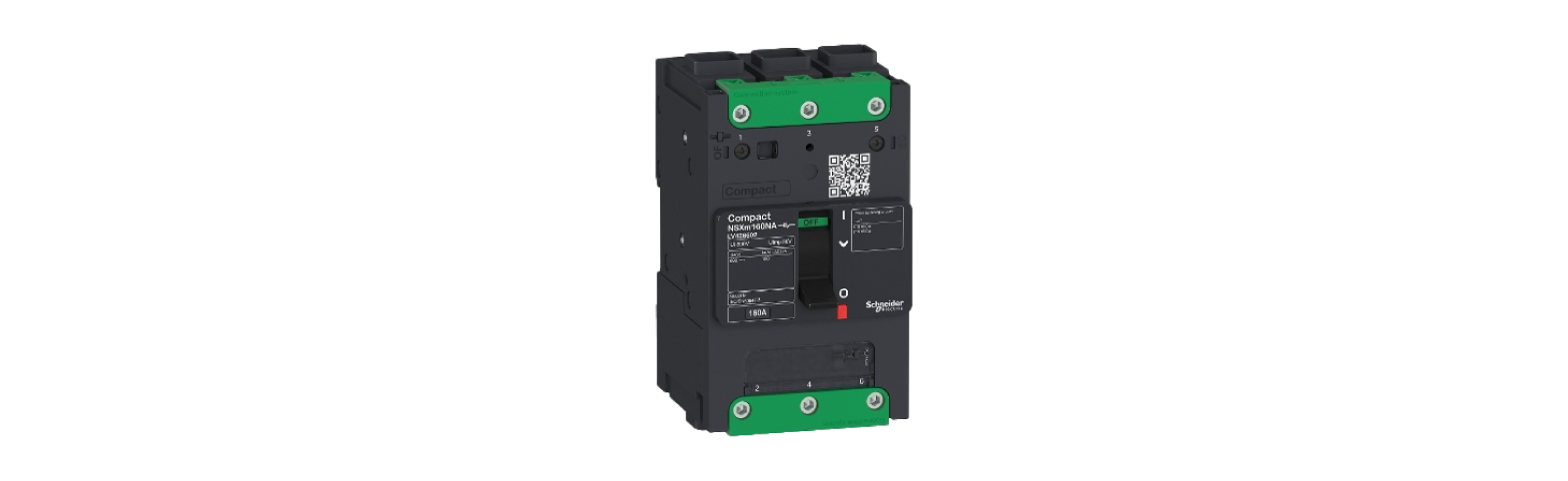

Specifications :

• Switch-disconnectors to interrupt lines up to 160 A

Feature :

• New smaller frame size: W: 81mm x H: 137mm x D: 80mm
• Nominal current: 50 to 160 A up to 690 V
• 3 and 4 pole versions available
• DIN rail and plate mount capability
• New EverLink connectors for bare cables
• Field-installable and spring-type auxiliaries externally visible
• Flexible installation: any position; switchboard or wall-mounted
• Same installation as the Compact NSXm circuit breaker; same size, power connections and fixation

Benefits :

• Easy and efficient
• Compatible accessories
• Optimize safety
• Clear communication

Application :

• IEC/EN 60947-1 and -3, IEC 60068-2-30 for type 2 tropicalisation, CCC, EAC and other local certifications
• Compliance with specifications of marine classification companies: Bureau Veritas, Lloyd’s Register of Shipping, Det Norske Veritas and RINA
• Categories: AC-22A/AC-23A

Enquiry now

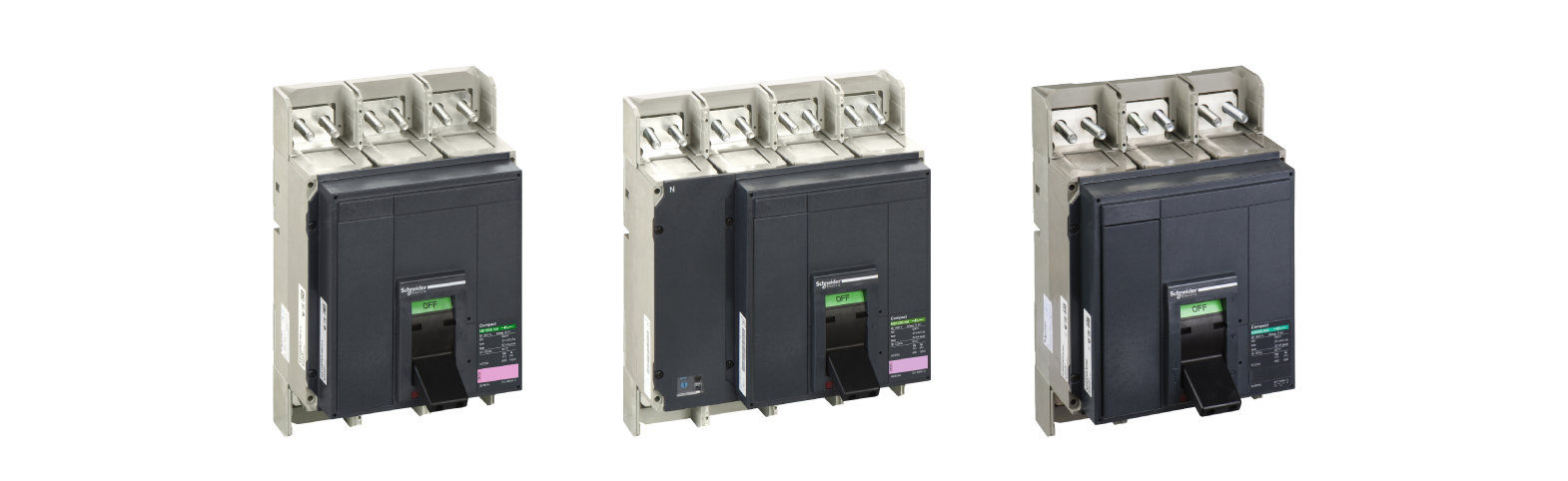

The ComPact NS NA, new generation switch disconnector provides high performance in a convenient size. It is suitable both as an incomer or as a feeder for manual or remote electrical installation operation.

Specifications :

• Switch-disconnectors, to interrupt lines up to 3200 A

Feature :

• Nominal current: 630 to 3200 A
• Voltage rating: 690 V
• Categories: AC23A
• Available in 3 and 4-pole versions
• Manual and remote operations up to 1600 A
• Available in fixed and withdrawable versions
• Add-on earth leakage protection available
• DC version available (up to 1500 A and 1000 V)

Benefits :

• Same footprint as ComPact NS circuit breakers
• Usable in any position
• Can be used as an incomer
• Wide range of auxiliaries and connection accessories
• Reduce inventory with shared accessories across the MasterPact NT and ComPact INS/INV range
• Additionally, available with the shunt and overvoltage release with the MN MX release coil

Application :

• Building: commercial buildings, hotels, hospitals, offices, etc.
• Data centers, wind turbines, solar, GenSet
• Industry: mining and minerals, automotive, food and beverage, and chemical industry
• Energy and infrastructures: airports, oil and gas, water treatment and marine

Enquiry now

Feature :

• Voltage rating:690 V
• Nominal current:80 to 3200 A
• Categories:AC23A/AC22A
•  2, 3 and 4-pole versions
• Isolation with positive break indication
• Additional functions for safety, remote control and comfort:earth leakage protection, MN/MX auxiliary trip units, remote control, ammeters
•  Wide range of common auxiliaries and accessories interchangeable on site
• Magnetic trip unit with high threshold allowing self-protection of device
• Compliance with international standards:IEC 60947-1 and -3
• Compliance with specifications of marine classification companies:Bureau Veritas, Lloyd’s Register of Shipping, Det Norske Veritas, etc.

Benefits :

By adapting to a whole host of LV applications, the Compact switches offer all the safety that the user requires. Designed for maximum performance and safety, this comprehensive range is in total keeping with the range of Compact NS circuit-breakers.

Applications :

• Source coupling
• Industrial power distribution switchboard
• Source changeover
• LV free tripping switches

Enquiry now

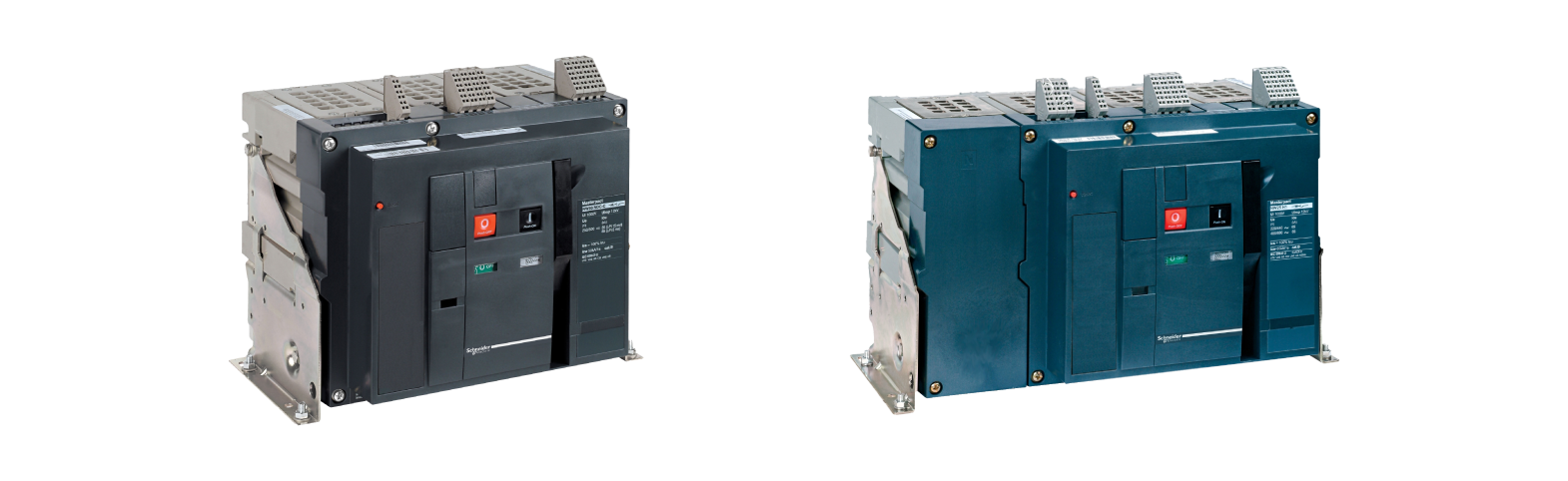

MasterPact Switch disconnectors are used to break load currents up to their normal current rate. By carrying elements of a switch and features of a disconnector, a switch disconnector makes or breaks a circuit under heavy electric load conditions, ensuring optimum safety for low voltage electrical circuits, especially for machine control circuits.

Specifications :

• Poles description : 3P, 4P
• Mounting mode : Drawout, Fixed

Feature :

• Nominal current:800 to 6300 A
• Voltage rating:690V
• Categories:AC23A /AC3
• 3 and 4-pole versions
• high performance making capacity and short-time withstand current
• Additional functions for safety, remote control and comfort:MN/MX auxiliary trip units, XF closing, remote control, source changeover
• Wide range of common auxiliaries and accessories interchangeable on site
• Compliance with international standards IEC 60947-3 and Annex A
• Compliance with specifications of marine classification companies:Bureau Veritas, Lloyd’s Register of Shipping, Det Norske Veritas, etc.

Benefits :

The Masterpact NW circuit-breaker range is characterised by its optimised dimensions and its high performances. Aiming at standardising electrical switchboards at a time when installations are increasingly complex, Masterpact provides an unequalled simplicity, both concerning choice and installation.

Application :

• Source coupling
• Distribution
• Source changeover
• Disconnection

Enquiry now
