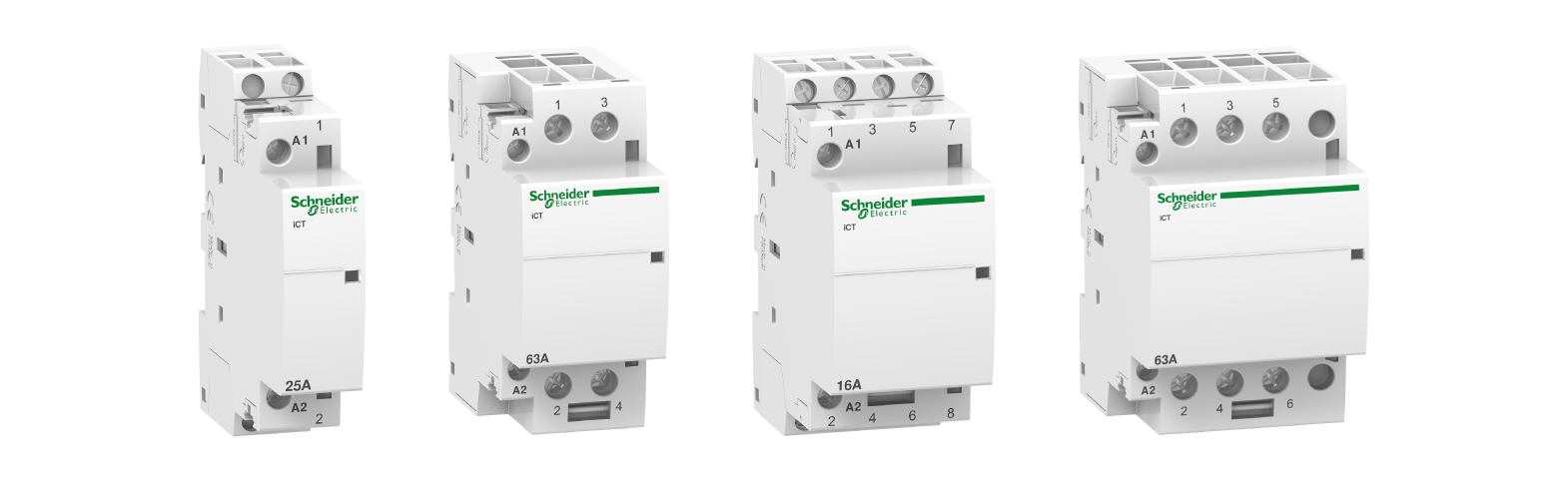

Acti 9 iCT

Specifications :

  • Poles description : 1P, 2P, 3P, 4P
  • Rated operational current : 6A, 8.5A, 15A, 16A, 20A, 25A, 32A, 40A, 63A, 100A
  • Control type : Remote and manual control, Remote control
  • Rated operational voltage : 250V, 400V

Features :

  • Rating:16, 20, 25, 40, 63 and 100 A
  • 1 to 4 poles: 1P, 2P, 3P, 4P
  • Fully compliant with standards: EN 61095 and CEI 1095
  • Excellent electrical endurance (O-C): 100,000 cycles
  • Provides users with up to 100 switching operations a day
  • 2 versions available with the option to use either standard or manually operated contactors
  • Wide range of flexible optional auxiliaries including state indication, interference filtering, dual control and time delay

Benefits :

  • Easy to select and monitor: with 1 to 4 poles.
  • Simple to order: two current ratings, NO and NC versions.
  • As part of the Acti9 range, can be combined with a variety of auxiliary control, protection, and indication functions.
  • Helps extend operational lifespan and protect loads.
  • Remote control: ideal for single-phase group control applications.
  • Straightforward installation, with direct compatibility with the Acti9 comb busbar system.
  • Compliant with IEC 61095.

Applications :

  • Industrial buildings
  • Commercial buildings
  • Residential buildings

Download Catalogue

Enquiry now

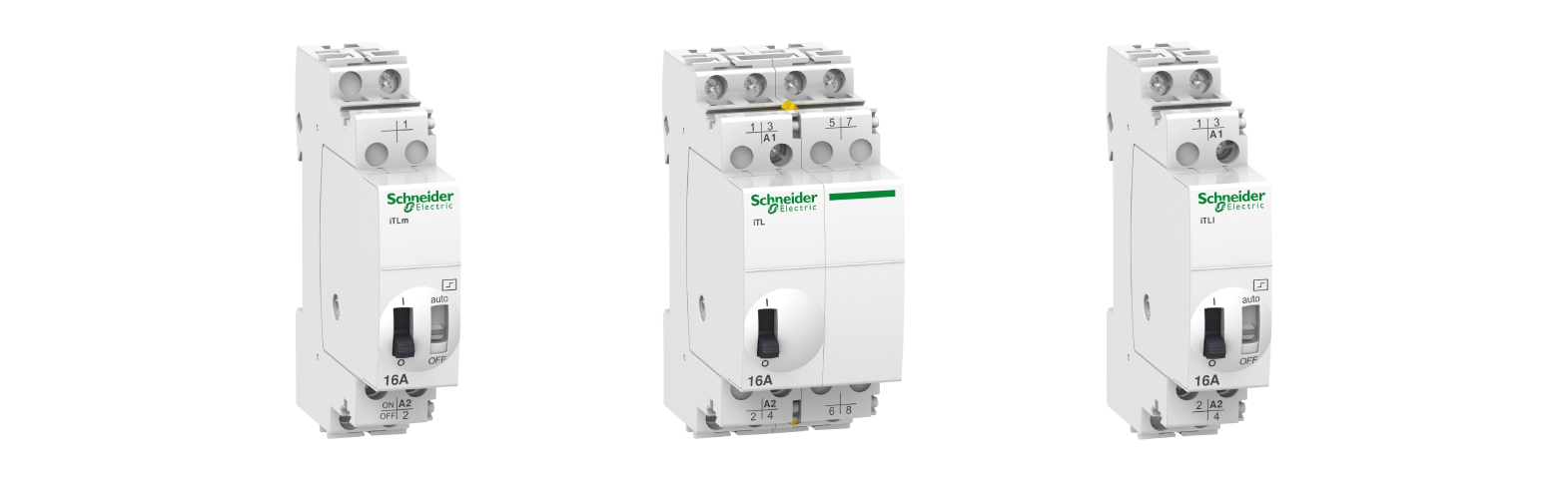

Acti 9 iTL

Specifications :

  • Poles description : 1P, 2P, 4P
  • Rated current : 16A, 32A
  • Control circuit voltage : 12V, 24V, 48V, 110V, 130V, 230...240V
  • Device short name : iTL, iTLc, iTLi, iTLm, iTLs

Features :

  • Class-2 insulation : continuous safety for operators and unqualified personnel.
  • Rating: 16, 32 A N
  • Number of poles: 1P, 2P, 3P or 4P
  • Multiple control by push buttons
  • Control voltage: 230, 130, 48, 24 V AC; 110, 24, 12 V DC
  • Lifetime - total number of switching operations (AC21): 200,000 for iTL 16 A,
    50,000 for iTL 32 A
  • Compliance with standards EN 669-1, EN 669-2-2,
  • Built-in or optional auxiliary function: state indication, centralised control, latched control, control for illuminated PB, step-by-step control, time delay
  • For more information click here

Benefits :

  • Peace of mind with a complete modular system
  • A simple clip-on system for flexible product and auxiliary combinations
  • Consistent with the entire Acti 9 offer
  • Compatible with all types of lighting

Applications :

  • Control and monitoring of electrical circuits in all industrial, commercial and residential buildings.
  • Lighting management via several push buttons

Enquiry now

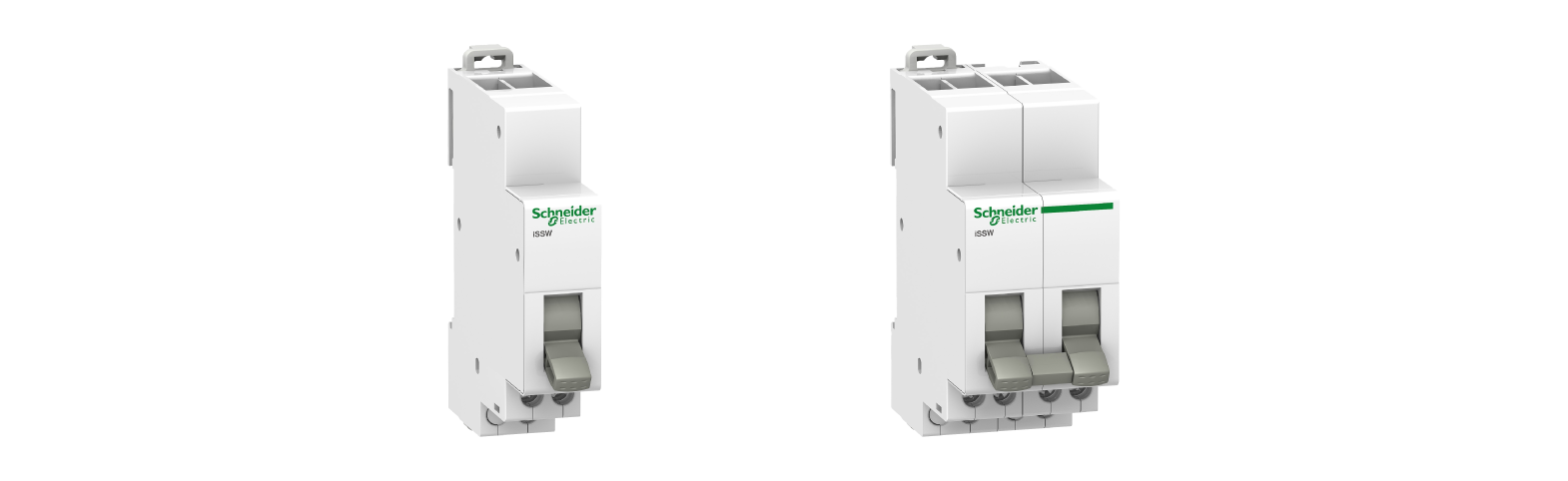

Acti 9 iSSW

Specifications :

  • Contact type and composition : 1 C/O, 1 NO + 1NC, 2 C/O

Features :

  • Fully compliant with standards: IEC 60669-1 and IEC 60947-5-1.
  • Rating: Rating: 20A with both 2-position and 3-position control.
  • Open and close circuits under load.

Benefits :

  • Easy to use and select.
  • Fully compliant with DIN rail standard.
  • Added peace of mind thanks to a complete modular system.

Applications :

  • Easy manual control of electric circuits.
  • Provides complete modular system for ease of use.

Enquiry now

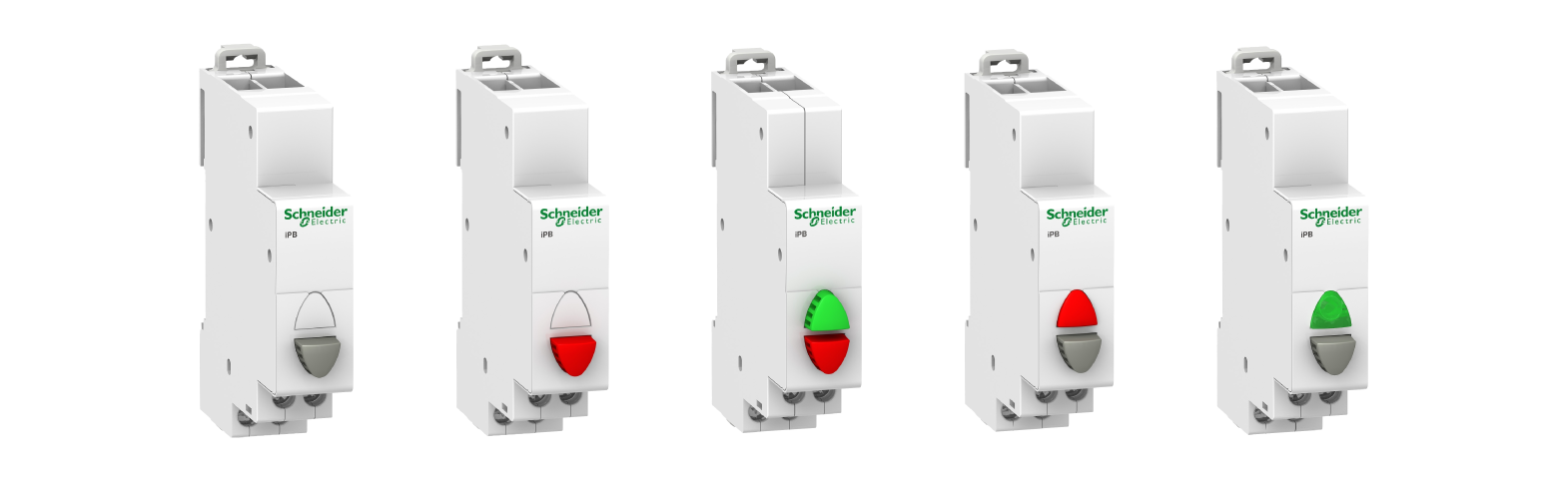

Acti 9 iPB & iSSW

Specifications :

  • Contact type and composition : 1 NC, 1 NO, 1 NO + 1NC
  • Control type number: 1, 2
  • Control type colour: Green/red, Grey, Red
  • Signalling circuit voltage: 12...48V, 110...230V
  • Signalling circuit type: AC, DC
  • Signalling circuit frequency: 50/60Hz

Features :

  • Contact: NO, NC or changeover
  • Number of positions: 2 or 3
  • Lifetime: linear iSSW, 30,000 cycles
  • Compliance with standards: IEC 60669-1 and IEC 60947-5-1

Benefits :

  • Easy to select, with a wide range compliant with the DIN rail standard
  • Peace of mind with a complete modular system
  • Consistent with the entire Acti 9 offer
  • Easy to operate with simple functions for the electrical circuit’s control

Applications :

  • Control and monitoring of electrical circuits in all industrial and tertiary buildings.
