Specifications :

• Poles description : 1P, 2P, 3P, 4P
• Rated current : 0.5A, 1A, 2A, 3A, 4A, 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A
• Curve code : B, C, D
• Breaking capacity : 6kA, 10kA, 15kA, 10000A
• Rated operational voltage : 12...48V, 60V, 100...125V, 220...240V, 220..250V, 240V, 380...415V, 415V
• Newtwork type: AC, DC

Features :

Quality without boundaries

The C120 circuit-breaker, derived directly from the C60, is recognised in over 100 countries for its quality and the breadth of its range, making it an indispensable component for developing low voltage installations with complete peace of mind.

Benefits :

• Ensures no accidental contact with live part – Finger-proof IP-20 terminals
• Avoids false insertion of cables and loose termination with Pull up terminals
• Total Flexibility : Line-Load reversibility
• Low cost with higher performance: Cascading. Cascading charts available From ACB-MCCB-MCB level.
• Reduce Downtime: Discrimination. Discrimination charts available From ACB-MCCB-MCB level
• Easy Installation: Bi – connect terminals
• Increased service life: Fast Closing mechanism
• Environmentally friendly with 100% recyclable & recoverable materials.

Applications :

• Protection of wires and cables against overload and short circuit current fault
• Protection of people against indirect contact in IT and TN earthing systems
• Suitability for isolation in the industrial sector to IEC/EN 60947

Download Catalogue

Enquiry now

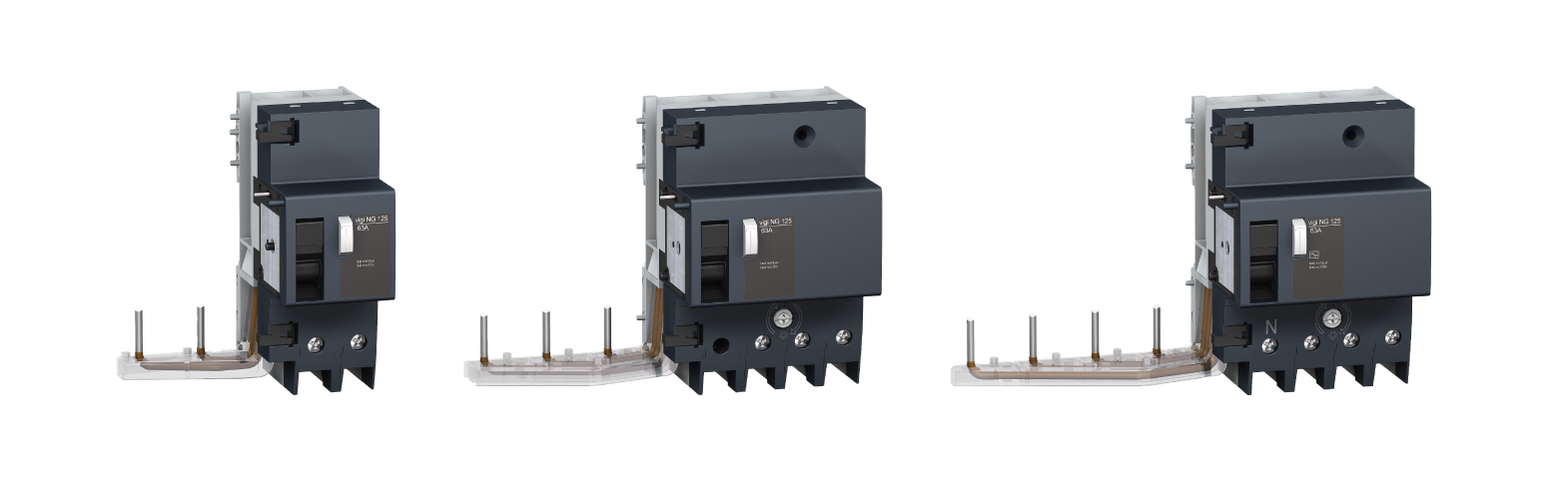

Specifications :

• Poles description : 2P, 3P, 4P
• Rated current : 63A, 125A
• Earth-leakage sensitivity : 30mA, 300mA, 500mA, 1000mA, 3000mA
• Earth-leakage protection class : Type A, Type A-SI (Super Immunised), Type AC
• Earth-leakage protection time delay : Adjustable instantaneous/selective, Adjustable instantaneous/selective/delayed, Instantaneous, Selective

Features :

• Providing additional protection against fire and fully compliant with national standards, the residual current add-on device is ideal if you are working with sensitive circuits.
• Easily connect to Acti 9 NG125 circuit breakers either electronically or manually.
• 30 mA sensitivity for additional protection against direct contact (in compliance with IEC 60364).
• 100 mA, 300 mA, 500 mA, 1000 mA, and 3000 mA sensitivities for additional protection against fire and indirect contact (in compliance with IEC 60364).
• “SI” (Super Immune) type: protects sensitive circuits (IT equipment) and those prone to disturbances (lighting ballasts, power electronics).
• Selective S or R types: trips the device that is closest to the fault current.
• Adjustable type: provides a choice of sensitivity and tripping time thanks to a switching mechanism.
• Complies with standards for the Acti 9 NG125 + Vigi NG125 module combination: IEC EN 61009 certified by national authorities, IEC 60947-2.
• Acti 9 NG125 circuit breakers retain the same characteristics when combined with a Vigi NG125 module.

Benefits :

• Designed specifically to work with Acti 9 NG125 circuit breakers, the residual current add-on device is not only easy to install, but provides you with much needed additional protection.
• Simplicity
• The simplicity of combining Vigi NG125 modules with Acti 9 NG125 circuit breakers makes them easy to install.
• Security
• “SI” (Super Immune) type Vigi NG125 modules are completely immune to disturbances.

Applications :

• Electrocution (in compliance with IEC 60364 installation standards and national standards).
• Fire hazards caused by leakage currents flowing into building materials.

Enquiry now

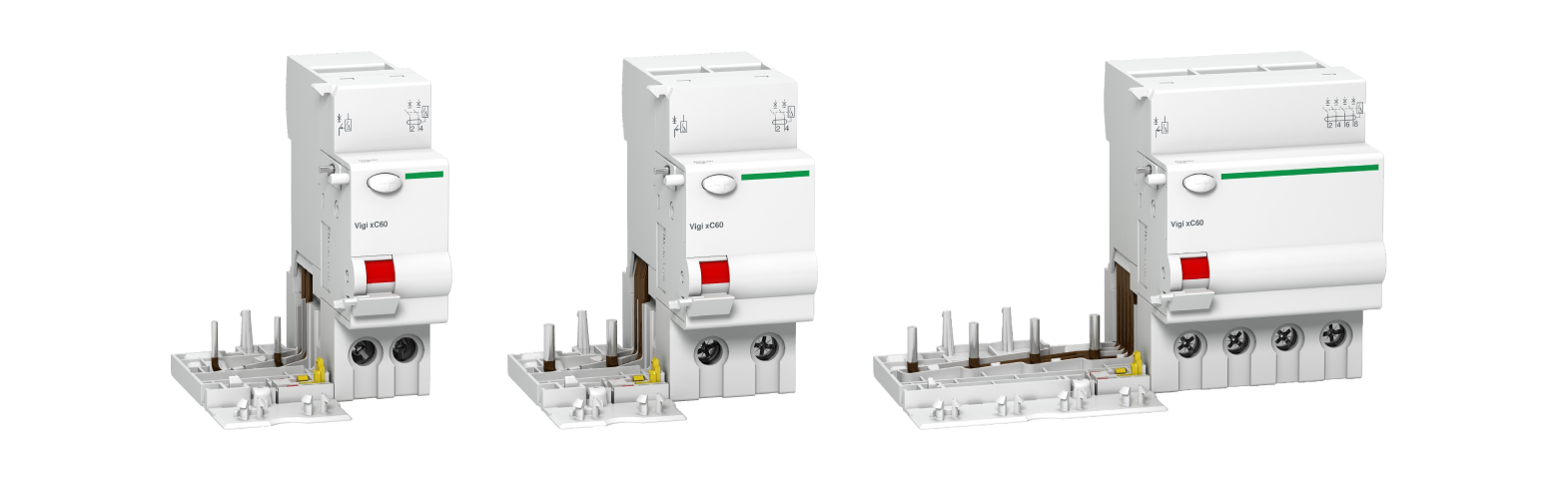

Features :

• Nominal current: up to 125A
• 30mA sensitivity: additional protection against direct contact (in accordance with IEC 364)
• 100 & 300mA sensitivities: additional protection against fire and indirect contact (in accordance with IEC 364)
• Class AC - for normal installation
• Conforms to IEC/EN 61009-1
• CE marked
• Suitable for additional Protection and Indication auxiliaries: ON/OFF, Trip, Shunt trip, Undervoltage trip, Overvoltage trip, Communication Auxiliary

Benefits :

• Total flexibility to select MCB as per load requirement to ensure best possible over current protection
• Easy monitoring: Earth fault indication on front face
• Immunity against nuisance tripping
• New SI RCDs offers enhanced immunity to electrical disturbances and polluted & corrosive environments
• Environmentally friendly with 100% recyclable & recoverable materials

Applications :

• Combined with MCB, the Vigi xC60 provide: Protection against earth leakage, short circuit and Overload faults
• Protection in all industrial and commercial buildings against:
  • Electrocution (in accordance with installation standard IEC 60364 and national standards)
  • The risk of fire due to current leakage into building electrical installations.

Enquiry now

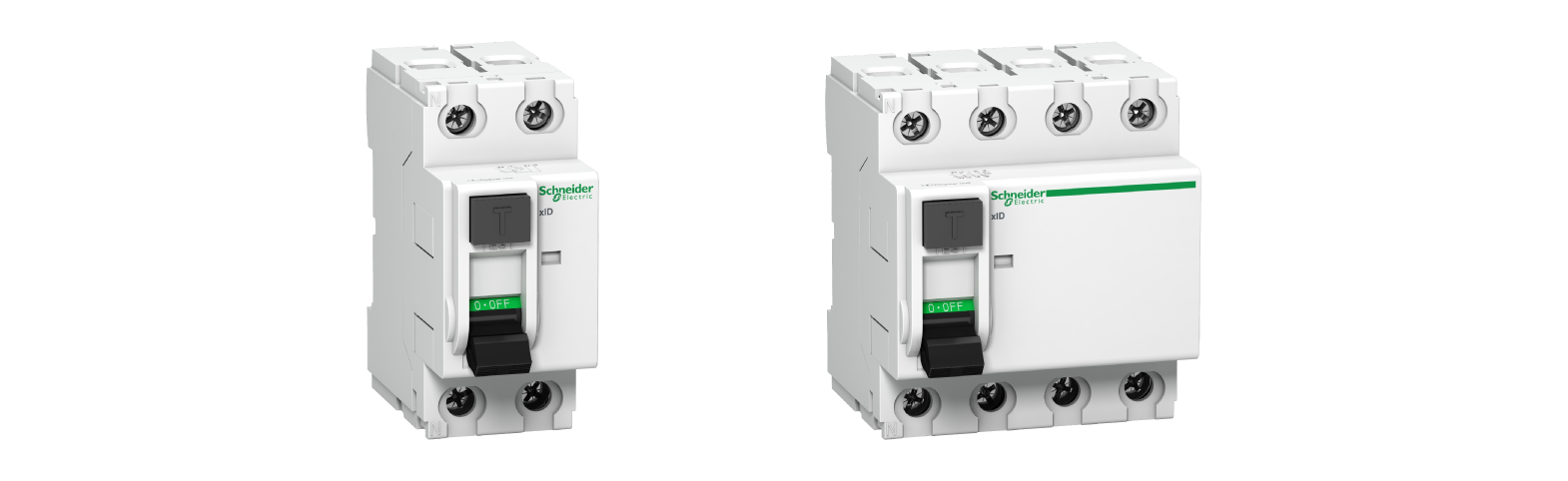

Specifications :

• Poles description : 2P, 4P
• Rated current : 63A, 125A
• Earth-leakage sensitivity : 30mA, 100mA, 300mA
• Earth-leakage protection time delay : Instantaneous, Selective
• Earth-leakage protection class : Type A-SI (Super Immunised), Type AC

Features :

• Nominal current: up to 125A
• 30mA sensitivity: additional protection against direct contact (in accordance with IEC 364)
• 100, 300, 500 mA sensitivities: additional protection against fire and indirect contact (in accordance with IEC 364)
• Class AC - for normal installation
• Class Si (New) - for electrically disturbed networks (with harmonics, pulsating DC components etc.) & for harsh environments (presence of corrosive atmosphere, chemical gases, humid location  etc)
• 4P RCCB is also suitable for 3phase 3 wire installation
• Conforms to IS 12640 and IEC/EN 61008
• ISI and CE marked
• Suitable for isolation in accordance with industrial standards: IEC 60947
• Intermediate auxiliary required for add-on protection and indication auxiliaries
• ID-125 RCCBs are suitable for indication OFsp auxiliary only
• Suitable for additional Protection and Indication auxiliaries: ON/OFF, Trip, Shunt trip, Undervoltage trip, Overvoltage trip, Communication Auxiliary

Benefits :

• Easy monitoring: Earth fault indication on front face
• Immunity against nuisance tripping
• New SI RCDs offers enhanced immunity to electrical disturbances and polluted & corrosive environments
• Ensures no accidental contact with live part – Finger-proof IP-20 terminals
• Avoids false insertion of cables and loose termination with Pull up terminals
• Environmentally friendly with 100% recyclable & recoverable materials.

Applications :

• Electrocution (in accordance with installation standard IEC 60364 and national standards)
• The risk of fire due to current leakage into building electrical installations.
• RCCBs guard against electrical shock in both home and industrial wiring.
• RCCBs are used to guard against earth leakage faults.
• RCCBs are typically found in low-voltage applications such as office spaces, industrial layouts, and residential homes.
• In low-voltage settings, RCCBs are used.
• RCCBs are also employed in office electrical systems.
• It's been used in both industrial and residential settings.

Enquiry now

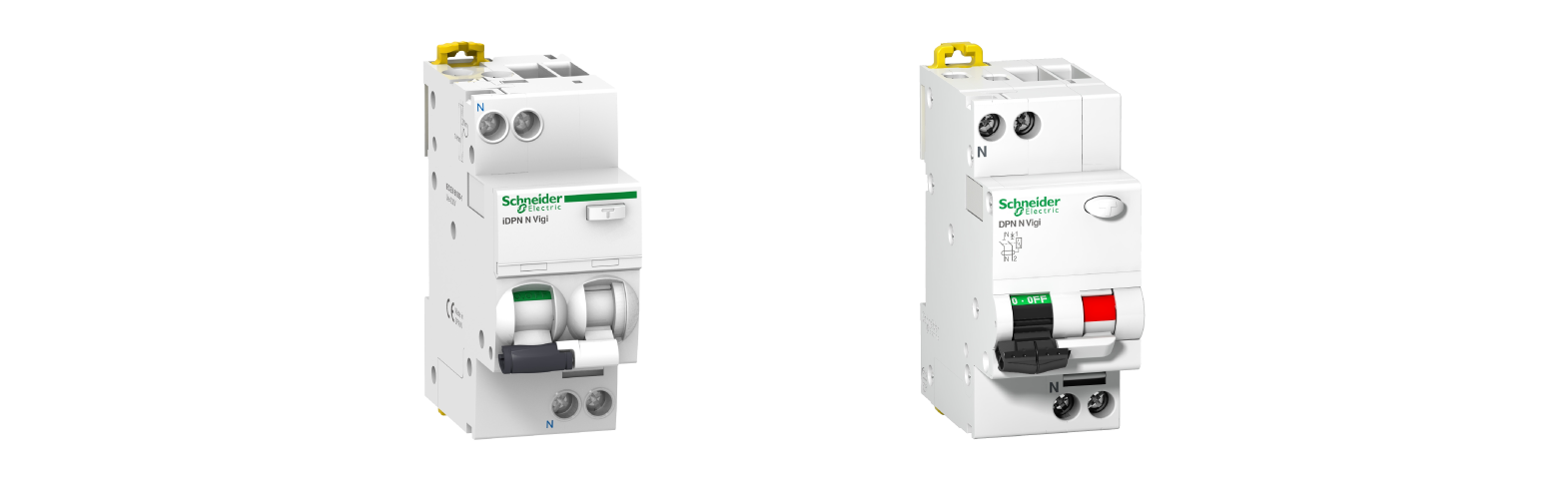

Specifications :

• Rated current : 4A, 6A, 10A, 13A, 16A, 20A, 25A, 32A, 40A
• Breaking Capacity : 4500A, 6000A, 10000A
• Rated opertaional voltage: 110V, 220..240V, 230V
• Curve Code : B, C
• Earth-leakage protection time delay : Delayed, Instantaneous
• Earth-leakage protection class : Type A, Type A-SI (Super Immunised), Type AC, Type AC-G
• Device short name: iDPN H Vigi, iDPN N Vigi, iDPNa Vigi

Features :

• Compliant with IEC/EN61009
• Voltage-independent technology compliant with IEC/EN61009-2-1
• Available in 1PN from 4 to 40A
• Sensitivity: 30, 100 and 300mA
• Available in Type AC, Type A, and Type A-SI
• Magnetic tripping curves: B and C
• Breaking capacity (Icn): up to 10,000A
• Limitation class: 3
• Insulation voltage (Ui): up to 400V
• Pollution degree: 3
• Rated impulse withstand voltage (Uimp): 4kV
• Test button
• Operating temperature: -5°C +60°C Type AC, -25°C +60°C Type A and A-SI

Benefits :

• Modularity and ease of installation
• Ease of operation
• Enhance safety and continuity of service
• Ensures no accidental contact with live part – Finger-proof IP-20 terminals
• Avoids false insertion of cables and loose termination with Pull up terminals
• Environmentally friendly with 100% recyclable & recoverable materials.

Applications :

• Building Automation Control
• Residential and Small Business
