Category

PROTECTION & MEASUREMENT DEVICES

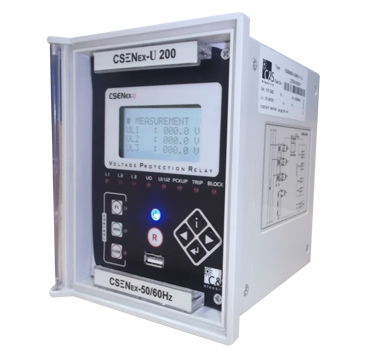

Numerical Voltage Protection Relay (Draw out) : CSENEX-U 200

Download Catalogue

Range :

  • Rated Data: Rated current lp :1A or 5A , Rated frequency: 50 Hz/ 60 Hz
  • Thermal withstand capability in current circuit: At lp : 1A, Continuous=5 x lp, for 10 Sec:30 x lp , for 1Sec = 100 x lp
  • Nominal Burden: For phase = < O.2VA, For earth = < O.2VA

Features :

  • Draw out enclosure have modular design
  • Measurement & Protection
  • SCADA Communication (Local & Remote)
  • DO Matrix Programmability
  • Intelligent key for DO status, details of fault pickup & status of last fault occurred

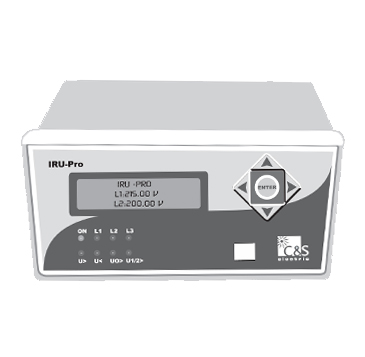

Numerical Voltage Protection Relay (Non-Draw out) : IRU PRO-UOR

Download Catalogue

Range :

  • Design : Weight approx 1Kg
  • Mounting : Rack or flush mounting.
  • Front Panel: IP 54
  • PC Interface :USB type B connector

Features :

  • Numeric DSP technology based relay
  • Digital tiltering of the measured values by using discrete Fourier analysis to suppress higher harmonics and D.C. components induced by faults or system operations
  • Two Groups of configuration parameter
  • Protection ANSI: 27, 59, 59N, 47, 59D
