Category

PROTECTION & MEASUREMENT DEVICES

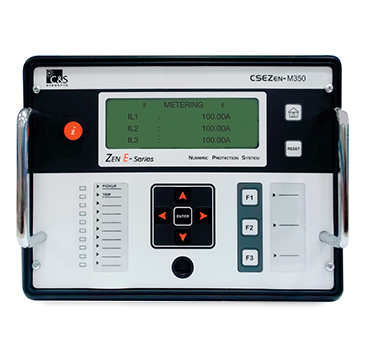

Advance Motor Protection & Monitoring IED : CSEZEN-M350

Download Catalogue

Range :

  • Rated current In :1A or 5A
  • Rated frequency Fn : 50 Hz/60 Hz

Features :

  • 1A & 5A Programmable Rated Current
  • Draw out enclosure have modular design with self CT shorting
  • Measurement, Protection & Control
  • SCADA Communication (Local & Remote)
  • DI/DO Matrix Programmability

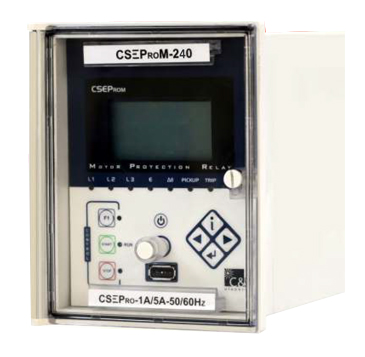

Intelligent Measuring and Protection Device : CSEPROM -240

Download Catalogue

Range :

  • Rated Current lp : 1A & 5A
  • Rated Frequency Fn : 5OHz / 60Hz
  • Rated Voltage : 63.5V & 110V

Features :

  • Phase reversal
  • Current unbalance with DEFT & INV
  • Phase Over current
  • Thermal Over load protection
  •  Locked rotor (SOLR)
  • Short circuit protection
  • Under current

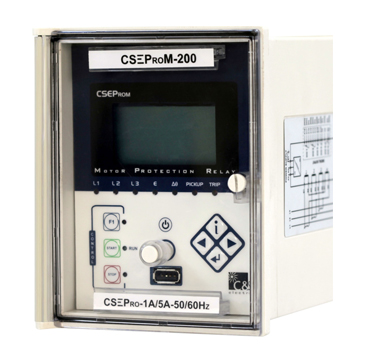

Intelligent Measuring & Protection Device for MV Motors : CSEPRO-M200

Download Catalogue

Range :

  • Rated current lp : 1A & 5A, Rated voltage Vn 63.5/110V
  • Rated frequency Fn : 50Hz / 60Hz

Features :

  • 1A & 5A Programmable Rated Current.
  • Draw out enclosure have modular design with CT shorting.
  • Modular design with self CT shorting.
  • Measurement, Protection & Metering.
  • SCADA Communication (Local & Remote).

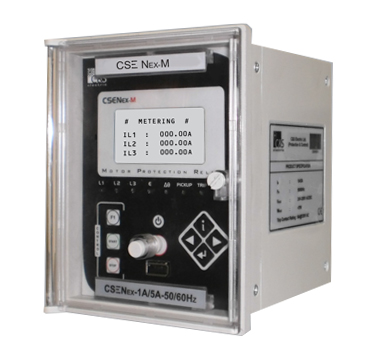

Numerical Motor Protection relay for MV/LV Motors : CSENEX-M100

Download Catalogue

Range :

  • Rated Data: Rated current lp :1A or 5A , Rated frequency: 50 Hz/ 60 Hz
  • Thermal withstand capability in current circuit: At lp : 1A, Continuous=5 x lp, for 10 Sec:30 x lp , for 1Sec = 100 x lp
  • Nominal Burden: For phase = < O.2VA, For earth = < O.2VA

Features :

  • 1A & 5A Programable rated current
  • Drawout enclosure have modular design with CT shorting
  • Protection like: thermal overload, over-current, undercurrent, short circuit etc
  • Communication
  • 25 Fault records
