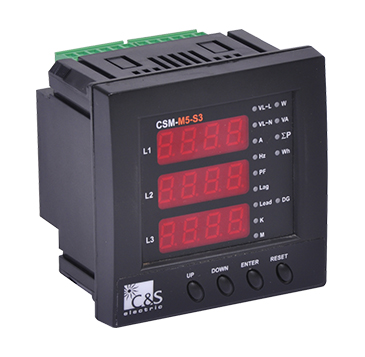

Digital 3 Phase Multifunction Meter (With Dual Source & RS485 Communication) : CSM-M5-S3-D-C

Download Catalogue

Technical Detail :

  • System Network Connection: 3 Phase, 4 Wire / 3 Phase, 3 Wire /1 Phase, 2 Wire
  • Auxiliary Supply: 85 – 300V AC/DC
  • Voltage Measurement: 50 – 270V AC (L-N) & 100 – 480V AC(L-L)
  • Rated Current: 5 Amp
  • Frequency Measurement: 20 – 200 Hz

Features :

  • Accuracy as per IEC 61036.
  • True RMS measurement.
  • Password protected parameter.
  • Auto scrolling of parameter.
  • Programmable CT/PT Ratio
  • Compact size of 96 x 96 mm
  • Micro processor based Digital Panel Meter Series

Digital 3 Phase V-I-F-PF-kW Meter (With RS485 Communication) : CSM-M4-S3-C

Download Catalogue

Technical Details :

  • System Network Connection: 3 Phase, 4 Wire / 3 Phase, 3 Wire /1 Phase, 2 Wire
  • Auxiliary Supply: 85 — 300V AC/DC
  • Voltage Measurement: 50 – 270V AC (L-N) & 100 – 480V AC(L-L)
  • Rated Current: 5 Amp
  • Frequency Measurement: 20 – 200 Hz

Features :

  • Accuracy as per IEC 61036.
  • True RMS measurement.
  • Password protected parameter.
  • Auto scrolling of parameter.
  • Programmable CT/PT Ratio.
  • Compact size of 96 x 96 mm
  • Micro processor based Digital Panel Meter Series

CSM ARTIS Single Phase / Single Function Meter

Download Catalogue

Technical Details :

  • System Network Connection: 3 Phase, 4 Wire / 3 Phase, 3 Wire /1 Phase, 2 Wire
  • Auxiliary Supply: 85 – 300V AC/DC
  • Voltage Measurement: 50 – 270V AC (L-N) & 100 – 480V AC(L-L)
  • Rated Current: 5 Amp
  • Frequency Measurement: 20 – 200 Hz

Features :

  • Accuracy as per IEC 61036.
  • True RMS measurement.
  • Password protected parameter.
  • Auto scrolling of parameter.
  • Programmable CT/PT Ratio.
  • Compact size of 96 x 96 mm
  • Micro processor based Digital Panel Meter Series

Digital 3 Phase Multifunction Meter : CSM-E-M5-S3

Download Catalogue

Technical Details :

  • System Network Connection: 3 Phase, 4 Wire / 3 Phase, 3 Wire / 1 Phase, 2 Wire
  • Auxiliary Supply: 175 – 265V AC
  • Voltage Measurement: 20 – 300V AC (L-N) / 35 – 485V AC (L-L) *
  • Current Measurement: 50mA – 6.5A (Rated current 5A)
  • Frequency Measurement: 45 – 65 Hz

Digital 1 Phase PF Meter : CSM-E-P1-S1

Download Catalogue

Technical Details :

  • System Network Connection: 3 Phase, 4 Wire / 3 Phase, 3 Wire / 1 Phase, 2 Wire
  • Auxiliary Supply: 175 – 265V AC
  • Voltage Measurement: 20 – 300V AC (L-N) / 35- 485V AC (L-L) *
  • Current Measurement: 50mA – 6.5A (Rated current 5A)
  • Frequency Measurement: 45 – 65 Hz

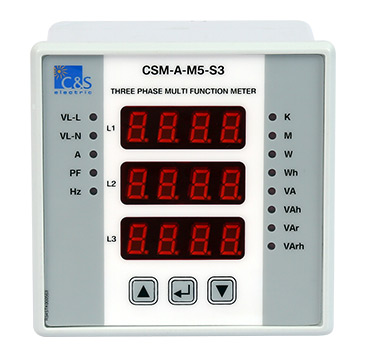

Smart Metering Solution : CSM-A

Download Catalogue

Technical Details :

  • System Network Connection: 3 Phase, 4 Wire / 3 Phase, 3 Wire / 1 Phase, 2 Wire
  • Auxiliary Supply: 190 – 450V AC / 90 – 290V AC
  • Voltage Measurement: 20 – 300V AC (L-N) / 35- 520V AC (L-L)
  • Current Measurement: 50mA – 6.5A (Rated current 5A)
  • Frequency Measurement: 45 – 65 Hz
