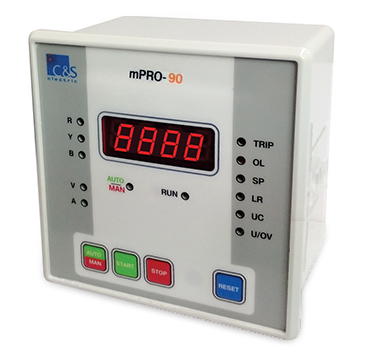

Range :

• Operational Current: 0.2 – 8.0 x IFL
• Frequency Range: 50/60 Hz
• Design Standards (As per IEC 60947): IEC 60947-4-1, IEC 61000-3-2, IEC 61000-3-3, IEC 60947-4-1

Features :

• Monitors the flow of the current from which the following operational conditions of the motor are gathered:-STOP, START & RUNNING
• Allows user to enable fail safe operation for DO-1 contacts.
• When mPRO generates a trip signal, the DO-1 relay coil is de-energized
• Short circuit protection is provided by tripping the relay when the motor operating current in any ofthe three phases exceeds the value corresponding to Short circuit setting
• During a phase loss, the motor winding current will increase by 150% or more

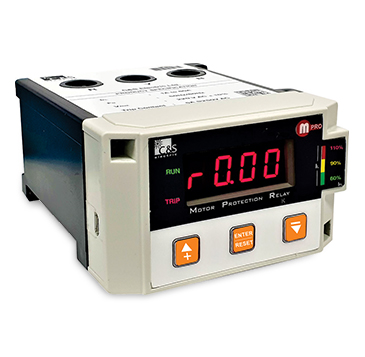

Range :

• Operational Current: 0.2 – 8.0 x IFL
• Frequency Range: 50/60 Hz
• Design Standards (As per IEC 60947): IEC 60947-4-1, IEC 61000-3-2, IEC 61000-3-3, IEC 60947-4-1

Feature :

• Monitors the flow of the current from which the following operational conditions of the motor are gathered:-STOP, START & RUNNING
• Allows user to enable fail safe operation for DO-1 contacts.
• When mPRO generates a trip signal, the DO-1 relay coil is de-energized
• Short circuit protection is provided by tripping the relay when the motor operating current in any ofthe three phases exceeds the value corresponding to Short circuit setting

Range :

• Rated voltage Un : 110 V, 230 V, 400 V AC
• frequency range at
  50 Hz rated frequency : 46 – 50 Hz
  60 Hz rated frequency : 55.2 – 60 Hz
• Tolerance : ± 1 % of of rated frequency
• Hysteresis : 0.5 % of of rated frequency
• power consumption : 3.7 VA
• Thermal load carrying : continuously 1.3 x Un capacity
• Returning time : 250 ms
• Minimum operating time : 250 ms

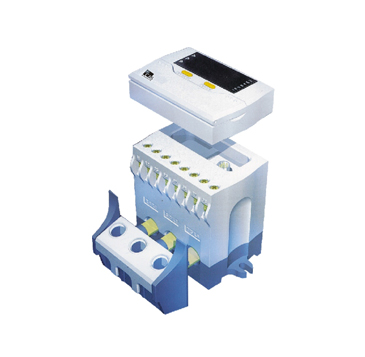

Range :

• Operating time characteristic: Inverse/Definite time
• Current range (A): 0.125~60A (One device)

Features :

• Multiple protection: Over current/ Phase failure/Stall /Asymmetry/ Phase reverse
• Current setting upto 80A in 3 frame sizes
• Fault diagnose by LEDs indication
• Time settingO-30 sec
• Accuracy:Current/Time

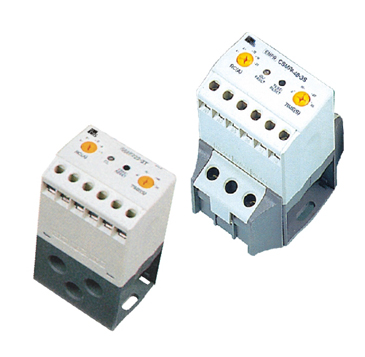

Range :

• Wiring: Screw type (S)/Tunnel (T)
• Panel mount: Unit or Extension
• Operation time: Select either reverse time characteristics or definite time

Features :

• Digital Relay with built-in MCU (Micro Processor Control Unit)
• Multiple protection: Over load / Phase failure/Stall /Asymmetry/ Phase reverse Earth Fault
• Current setting 0.5-6A&5-60A
• Current setting 0.5-6A can be used upto 600A with external
• Fault diagnostic seven segmentb display of fault & values
